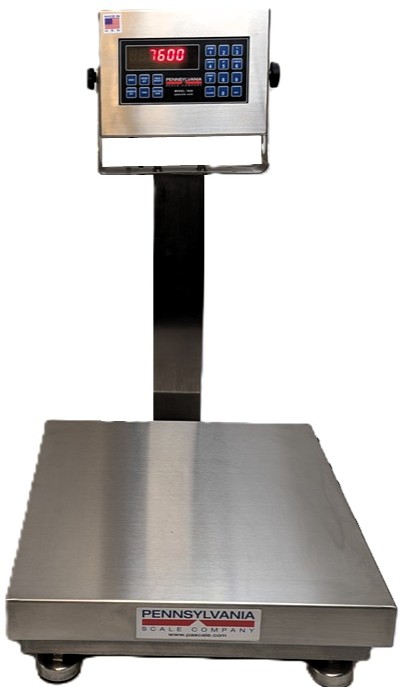

Pennsylvania SS7600MAX Series IP69K Nema 4X Stainless Steel Washdown Bench Scale
Designed for the Harshest Washdowns. Maximize Uptime. Cut Repair Costs. Achieve MAX Performance with IP69K Protection.
Built for the Toughest Environments. Engineered for Absolute Precision.
When it comes to beef, pork, poultry, food processing, or pharmaceutical production, uptime and sanitation are non-negotiable. That’s why the 7600 MAX is purpose-built to thrive where others fail. With full IP69K-rated washdown protection and rugged industrial design, it delivers unmatched accuracy, reliability, and performance—even under relentless high-pressure, high-temperature sanitation.
Engineered for environments where clean isn’t just a standard—it’s a requirement.
Standard Features:
Outstanding performance in washdown sanitary production environments.
Washdown rating of IP69K/Nema 4X for high pressure washdown protection
304 stainless steel design including load cell and all hardware resists corrosion from harsh cleaning chemicals and repeated washdown.• 300% overload protection.
Hygienic and easy to clean design, completely sealed indicator and welded corners on platform cover along with an open design base structure makes this easy to clean without areas to collect water or debris.
Includes 14” or 18″ Column\.
7600 With full functions with Sample, Zero, Tare, Keypad Tare, Gross/Net, Piece Weight, Print, Base and Units
Weight displayed in any two units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. – oz
Serial com port standard, bi-directional and programmable, optional Ethernet, Wi-Fi, USB, Bluetooth and analog output.
Specifications:
Power AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
Power Consumption 0.25A at 115 VAC, 0.13A at 230 VAC
Circuit Protection RFI, EMI, ESD Protection ADC shielded
Display: .56 LED Red, bright, stable and easy to read
Operating Temperature 14℉ to 104℉, -10℃ to 40℃
Internal Resolution 1/8,000,000
Displayed Resolution. Standard 1/10,000. Up to 1/50,000
5 VDC excitation to power 350-ohm load cells
Two Year Limited Warranty.
Options (call for pricing)
Dual base input
External power input 12 or 24 VDC, specify at time of order, requires external power supply of 12 or 24 VDC
220/230 VAC Operation
1 Alarm Buzzer Mounted inside scale or indicator
Setpoint/Relays DC or AC
Wired Ethernet and Wi-Fi TCP/IP
USB com port and keyboard emulation HID
Bluetooth com port and keyboard emulation HID
