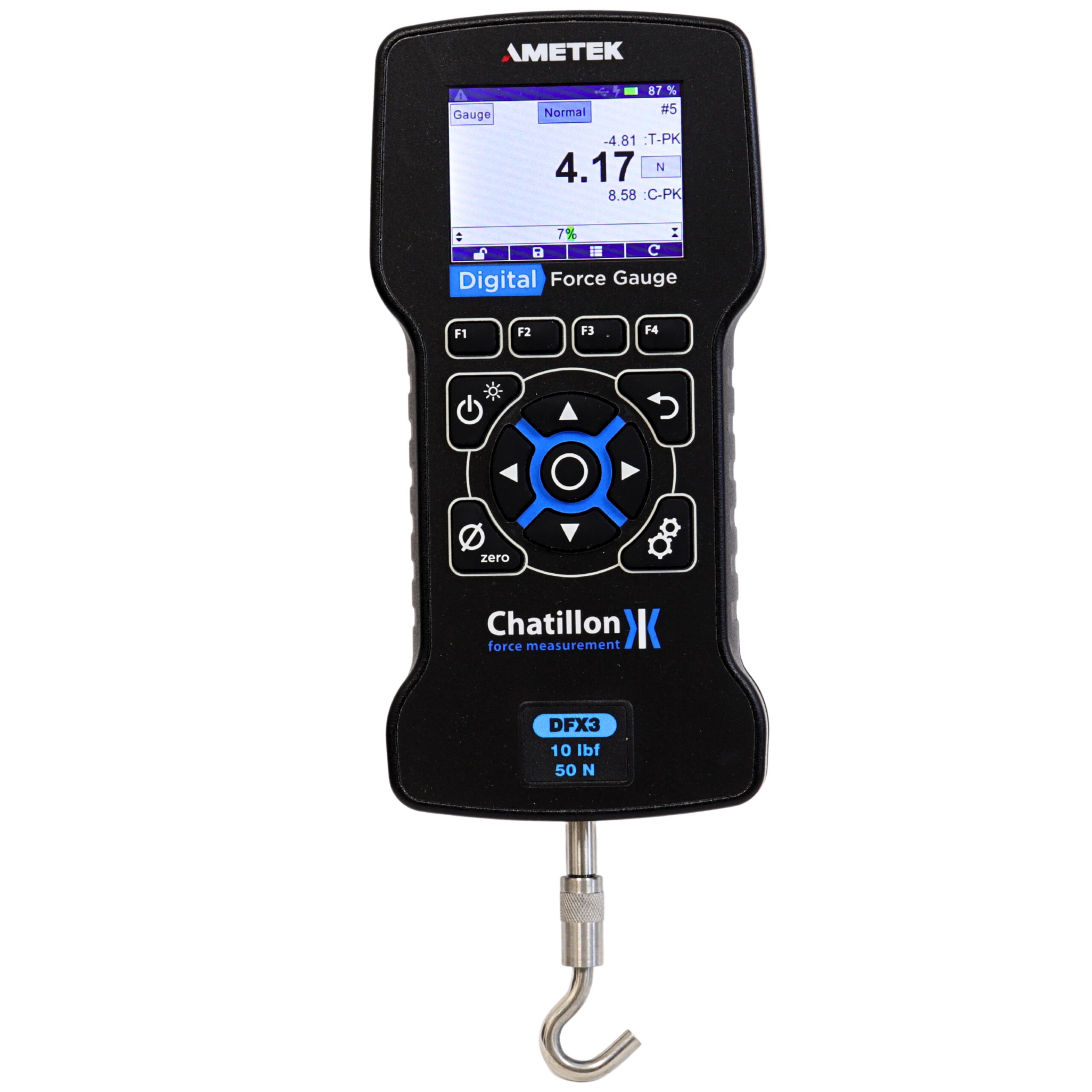

Chatillon DFX3 Digital Force Gauge
The DFX3 Series from Chatillon is a powerful and easy-to-use digital force gauge designed for handheld
or test stand use. Whether performing basic force measurements or capturing peak values in tension and
compression, the DFX3 delivers dependable, accurate results. Its compact design, full-color display, and
advanced usability make it ideal for quality assurance, production, and field application
What’s New in the DFX3?
These enhancements make the DFX3 a powerful upgrade for both new and existing users:
- Full-Color LCD Display (As on the DFS3)
An easy-to-read screen with visual indicators for force direction, overload warnings, and system status. - On-Gauge Storage with Timestamps
Store up to 100 readings directly on the gauge—each with a timestamp for traceability and audit readiness. - Smart User Interface
Dynamic function keys and a simplified single-layer menu system make setup and operation faster and more intuitive. - Modern Power Management
Rechargeable lithium-ion battery with up to 40 hours of runtime and adjustable auto shutoff. - Visual Load Bar
Real-time, color-coded feedback on force magnitude and direction—ideal for safer, more controlled testing.
Overload History Tracking
Built-in monitoring of overload events helps support preventive maintenance and long-term reliability
Dependable, Accurate Measurements
At the heart of the DFX3 is an integral loadcell sensor engineered for repeatable, high-accuracy results.
With mechanical overload protection up to 150% of full scale and advanced internal monitoring, the DFX3 not only measures force but also tracks overload history — a powerful tool for preventive maintenance and long-term reliability.
The dynamic color-coded load bar displays:
Real-time force magnitude
Force direction (tension/compression)
Overload warning as you approach capacity
These visual cues support safer, more controlled testing and reduce the risk of loadcell damage.
Battery Life – Built for Long Workdays
The extraordinarily long battery life of the DFX3 reduces the need for continuous recharging. The dimming functionality of the DFX3 provides a battery life of 30 hours when the dimming is off while turning the dimming on will provide a full 40 hours of battery life
Accessories – Ready for Every Application
The gauge has either #10-32 or 5/16-18 male threads depending on the gauge capacity. As standard the gauge is supplied with Flat adapter and Hook. A wide assortment of optional accessories are available:
Extension rods, pointed and chisel tips, notch adapters
Eye-end adapters, pistol grips
Test stand adapters for MT and TT series
Quick accessory changes make the DFX3 adaptable for virtually any handheld or fixture-mounted test setup
Choose the Right Model for Your Application
The DFX3 Series is available in a range of capacities to suit your specific testing needs. Whether you’re measuring light forces or high-capacity loads, each model delivers the same high level of accuracy, reliability, and ease of use.
