Straightpoint SW-HHP-ATEX ATEX / IECEx approved wireless handheld display.
Note: We offer discounts on all Straightpoint products. For a best price call 800-572-2531 or click on the link to email us at sales@johnsonscale.com

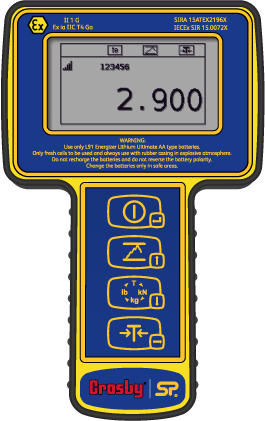

The ATEX hand control is an intrinsically safe rugged and versatile digital handheld display with a broad range of features and is suitable for all Straightpoint ATEX / IECEx products with the option to read up to four SP Ex load cells simultaneously allowing the operator to monitor a multi-pick point lift from a single handheld.
With a range of 500m or 1640ft enables the user to measure loads from a safe distance in hazardous areas zones 0,1 & 2, such as offshore oil rigs and petrochemical plants
At the heart of the ergonomically designed ATEX Handheld plus is a powerful PCB providing industry-leading features such as user selectable units of measure (tonnes, lbs, kg and kN), peak hold, pre-set tare and an on-screen overload warning and loadcell calibration due warning
| Part Number | SW-HHP-ATEX | |
| Battery Type | 4 x Energizer® Ultimate Lithium AA Batteries | |
| Battery Life | 40 hrs continuous | |
| Display Type | 240×128 Multiline dot matrix with backlight | |
| Operating Temp | -20 to +70 °C / -4 to 158 ˚F | |
| Display Rate | 3Hz | |
| Protection | IP65 or NEMA 4X | |
| Excitation | N/A | |
| Max Sensitivity | N/A | |
| Max resolution | 1:999999 (normal mode) | |
| Range | 500 meters | |
| 1640 feet | ||
| Approval Spec | Ex ia II C T4 Ga for use in zone 2, 1 & 0 – certificate number IECEx SIR 15.0072X & SIRA 15ATEX2196X | |
| Connectivity | Wireless 2.4 GHz | |
SAFETY REMINDER
To all users of Crosby Straightpoint ATEX/UKEX/IECeX products:
Please ensure that only intrinsically safe batteries, certified for use in hazardous areas, are fitted.
(It is suggested that this is verified as part of pre-use equipment checks.)
We recommend using Energizer L91 Ultimate Lithium AA batteries, rated for use in Zone 0,1,2, and Class 1, Division 1.
