Mark-10 WT-205 Wire Crimp Pull Tester

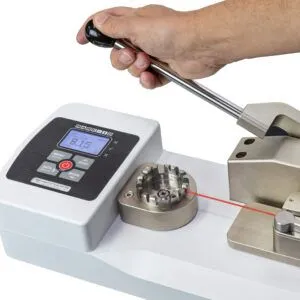

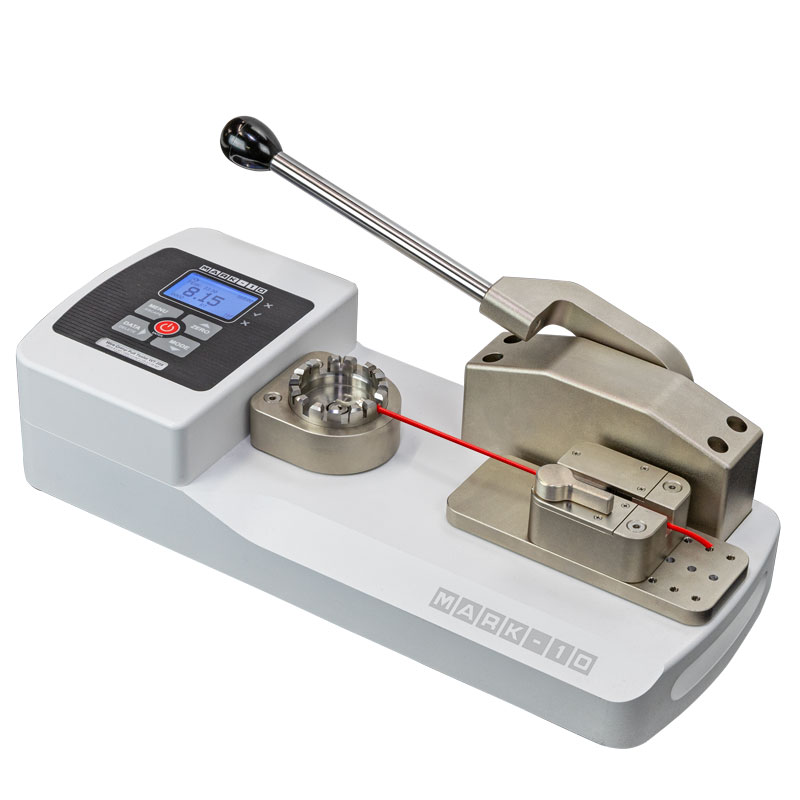

Measure wire crimp pull forces accurately and efficiently with the portable and customizable WT-205 tester. Easily apply up to 200 lbF (1,000 N) of force via an ergonomic lever. The tester’s standard adjustable terminal fixture contains multiple slots for diameters up to AWG 3 (0.25 in [6.3 mm]), while the self-tightening wedge grip securely clamps the free end of the cable.

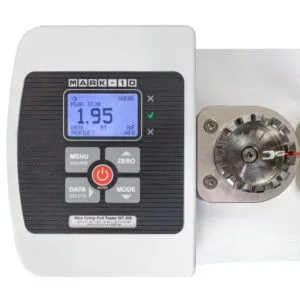

A backlit graphic LCD displays real-time force, peak force, unit of measurement, and pass/fail indicators. Green and red pass/fail indicators may also be used. A load bar on the display shows when an overload is approaching.

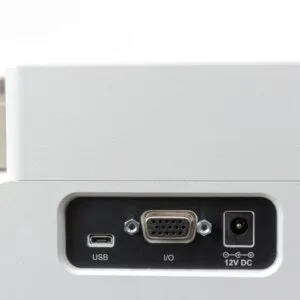

Transfer data to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. The WT-205 stores up to 1,000 readings and calculates statistics. Upon sample break, the tester can automatically save and output the peak force and auto-zero in preparation for the next test, increasing testing efficiency.
- Measures real-time and peak force values
- Ergonomic lever operation produces 200 lbF [1,000 N]
- USB, RS-232, Mitutoyo (Digimatic), and analog outputs
- Automatic output / data storage / zeroing upon sample break helps automate testing processes
- 1,000-point data memory with statistics and outputs
- Password protection prevents unauthorized changes
- Programmable set point indicators and outputs for pass/ fail determination
- High-speed 7,000 Hz sampling rate accurately captures peak force values
- Configurable audio alarms and key tones
- Mounting holes for bench mounting
Optional Functions
Profiles: WF010 Save and recall sets of test parameters, such as speed, pass/fail limits, unit of measurement, etc. Maximum of 500 profiles may be stored.
Date and Time Stamp: WF013 A date and time stamp is applied to each saved data point.
Complete Options package: WF-COMP-205 Includes all of the above options
Optional functions may be purchased at time of order or may be enabled in the field at a later date through a simple activation process. A complete options package is also available, including all of the listed features at a discounted price. The tester is shipped in Demo Mode, during which time all available functions are enabled for 160 hours of operation.
Top 5 List of Improvements Over The Previous Generation
Wedge-action grip for wires
Based on the design of our popular G1061 wedge grip, this self-tightening mechanism effectively secures the free end of the wire. The magnetic-detented turret terminal grip from the previous generation continues on.
Optional grips and fixtures
Mix and match to suit the particular sample. For the terminal end, use the standard turret grip, wedge, ring, or blank machinable fixture. For the wire end, use the standard wedge grip, dual roller, or bollard fixture. Or, mount a custom gripper on the tooling plate. We’re happy to evaluate samples at our factory and make a recommendation before purchase.
Optional functions for manual model
Date & Time Stamp and Profiles options are now available in the manual model WT-205 as well, not just the motorized model.
Integrated lifting handles
Lifting and moving these testers is a breeze!
New paint job
OK, it’s not a big deal, but we hope you like the new color scheme featuring our signature satin, nickel-plated finish on aluminum components. These testers bear a family resemblance to our other instruments and test frames.
Made in the USA
3 year warranty
