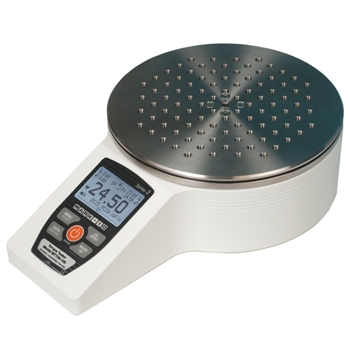

Digital Torque Tester
Series TT05
Series TT05 universal torque testers can be used for a range of applications up to 100 lbFin [11.5 Nm]. The stainless steel loading surface features a matrix of threaded holes, ideal for accommodating specialized fixtures and attachments. The testers’ rugged design and simple, intuitive operation allow for use in laboratory and production environments.
Accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.
The TT05 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon sample break, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for torque tool testing, tamper evident closure testing, and other applications.
Series TT05 testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data stored in the TT05’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
- Stainless steel loading plate with matrix of threaded holes accommodates fixtures and attachments
- USB,RS232, Mitutoyo and analog outputs
- Automatic output, data storage, and zeroing upon sample break
- First & Second peak detection for torque tool, bottle cap testing and other applications
- 1000 point data memory with statistics and outputs
- Password protection prevents unauthorized changes
- High speed 7000 Hz sampling rate accurately captures peak torque values
- Programmable setpoint indicators
- MESUR lite data collection software and cable included.
- 3 year warranty
