Advanced Force Gauge

Series 3

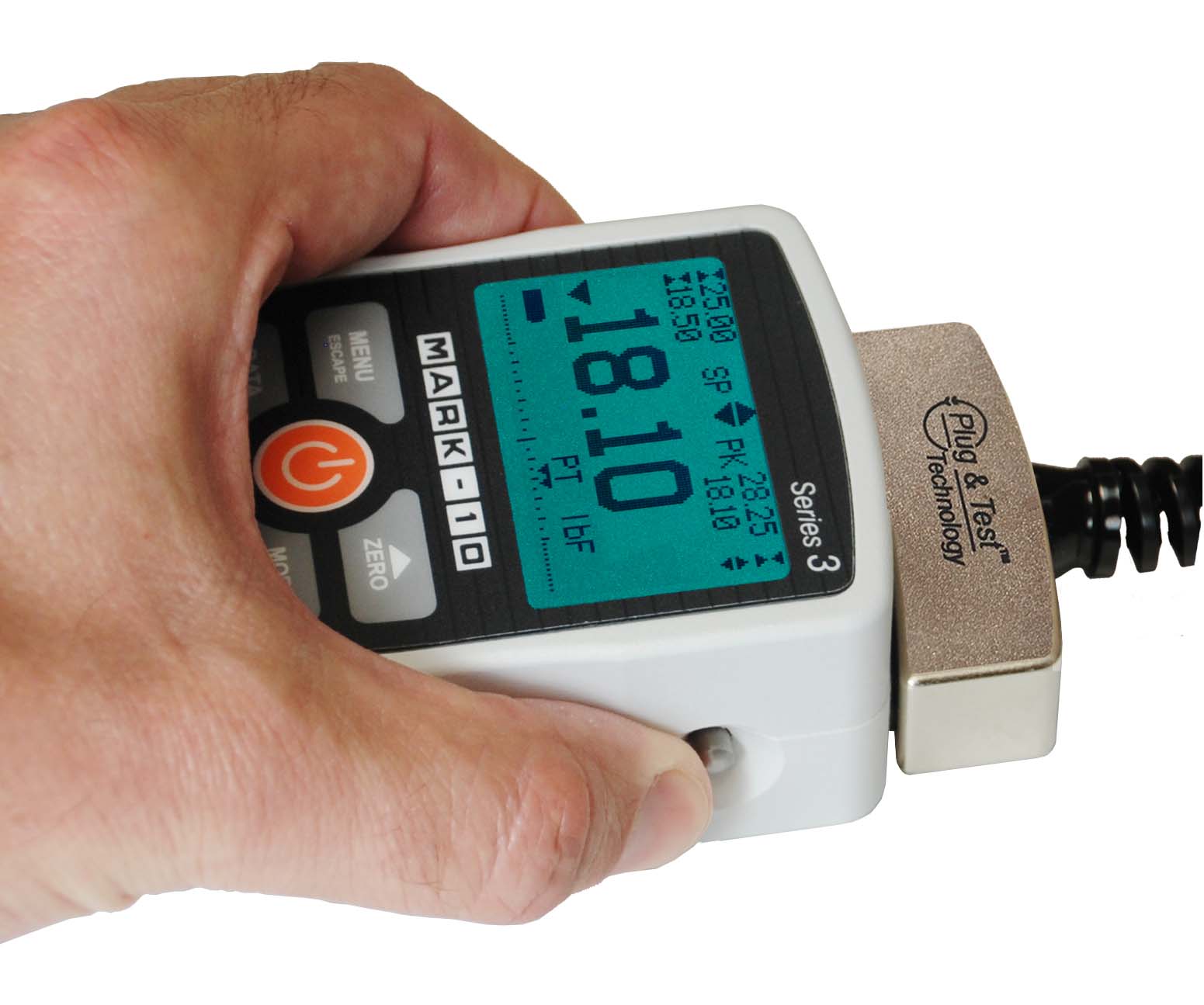

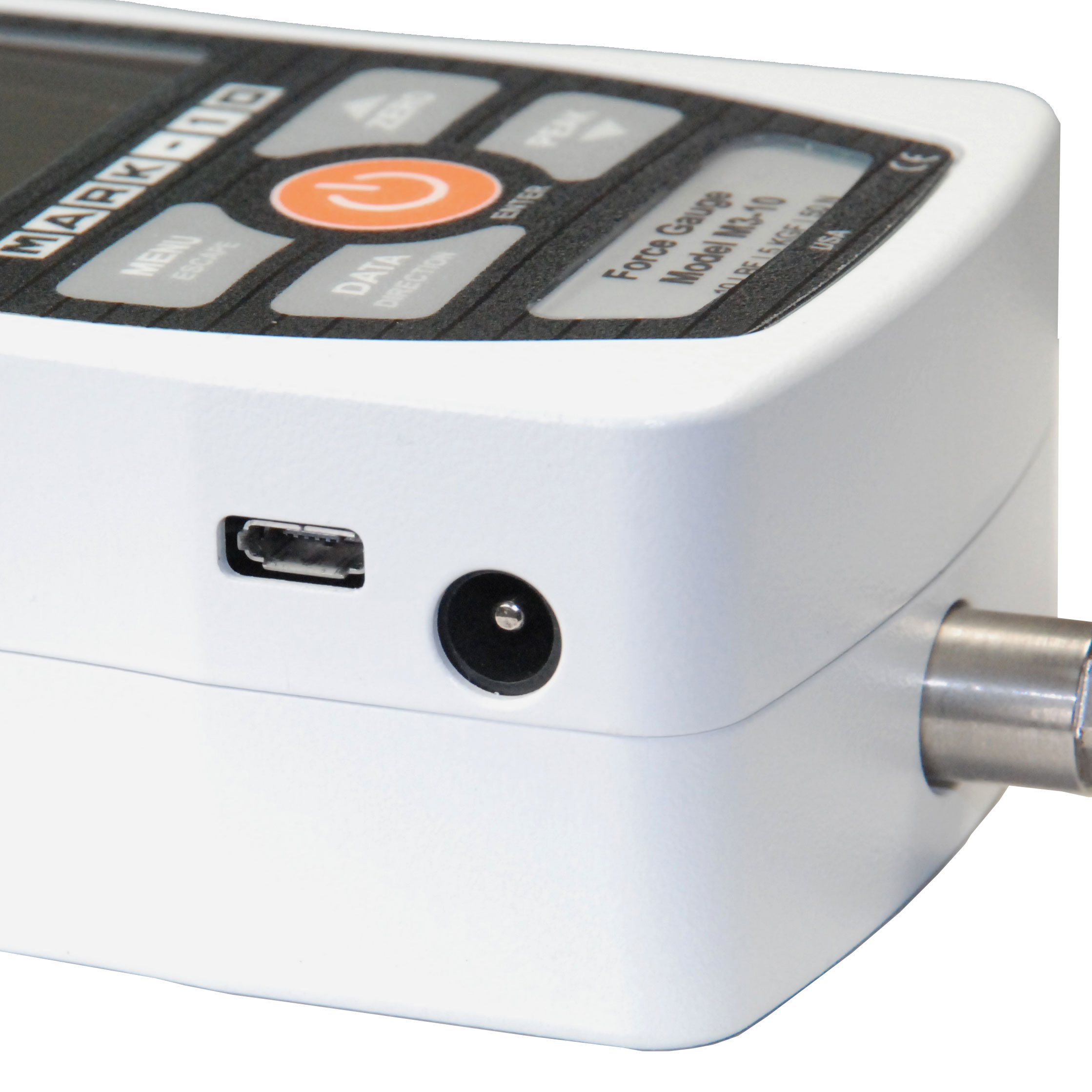

Mark-10 Series 3 force gauges are designed for tension and compression force testing in numerous applications from 0.12lbf to 500lbf (0.5N-2500N). The gauges feature a sampling rate of 2000HZ producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output is provided for the data collection purposes. Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force. An ergonomic, reversible aluminum housing allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 3 digital force gauges are directly compatible with Mark-10 test stands, grips and software.

Each Series 3 gauge includes a cushioned carrying case, universal AC adapter, MESUR Lite software, USB cable and driver, hook, flat, chisel, cone, V-notch, extension rod and NIST traceable calibration certificate. High speed 2000HZ sampling rate Three selectable weighing units Ultra compact size Large backlit graphic display Live load bar graph with set point markers Peak readings and set points always displayed. Note: USB output now allows the gauge to respond to the ? ASCII command, allowing programs such as MESUR gauge and MESUR Lite to request single point or continuous data. High speed 2000HZ sampling rate USB Data output (single point or continuous data capture). Large backlit display Peak readings and set points always displayed 4 selectable units of measurement. MESUR Lite data collection software included.

NEW PRODUCT Series 3 force gauges are designed for tension and compression force testing in numerous applications from 0.12lbf to 500lbf(0.5N-2500N). The gauges feature a sampling rate of 2000HZ producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output is provided for the data collection purposes. Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force. An ergonomic, reversible aluminum housing allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 3 digital force gauges are directly compatible with Mark-10 test stands, grips and software. Each Sereies 3 gauge includes a cushioned carrying case, universal AC adapter, MESUR Lite software, USB cable and driver, hook, flat, chisel, cone, V-notch, extension rod and NIST traceable calibration certificate. High speed 2000HZ sampling rate Three seletable weighing units Ultra compact size Large backlit graphic display Live load bar graph with set point markers Peak readings and set points always displayed.Note: USB output now allows the gauge to respond to the ? ASCII command, allowing programs such as MESUR gauge and MESUR Lite to request single point or continuous data.High speed 2000HZ sampling rateUSB Data output (single point or continuous data capture)Large backlit displayPeak readings and set points always displayed4 selectable units of measurementMESUR Lite data collection software included
