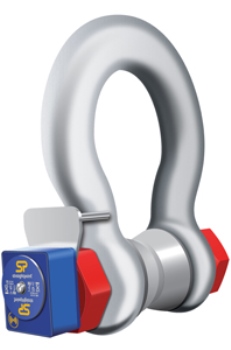

Straightpoint Blue Tooth Enabled Load Shackle

Blue Tooth Shackle Load Cell

Note: We offer discounts on all Straightpoint products. For a best price call 800-572-2531 or click on the link to email us at sales@johnsonscale.com

Straightpoint’s Wireless Blue Tooth enabled  Loadshackle provides the perfect solution to limited headroom applications. Each Wireless Blue Tooth Loadshackle is proof tested, then equipped with a hard anodised aluminium electronics enclosure. Contained within this aluminium enclosure is a new internal chassis providing IP67/NEMA6 environmental protection even with the battery cover plate missing. Featuring industry leading wireless technology and range of 700m/2300ft, the Wireless Blue Tooth Loadshackle is supplied with an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz. Data is transmitted wirelessly utilizing the latest Blue Tooth technology providing safe, high integrity, error free transmission via Bluetooth SW-HHP App for Android and iOS devices

Straightpoint’s Wireless Blue Tooth Loadshackle utilizes easily sourced AA alkaline batteries and features advanced circuitry designed to protect the unit from damage associated with incorrectly installed batteries. This advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement. Straightpoint’s huge range of tooling allows the engineers to calibrate in shackle for extra accuracy unlike many other load cell manufacturers.

HHP Bluetooth APP SUPPLIED FREE WITH ANY SP BLUETOOTH® ENABLED LOAD CELL

Connecting up to 8 smart devices the HHP app allows you to stand back and remotely monitor the level of force being measured by your SP product in real-time, without the need for troublesome cabling. Once you have downloaded and installed the app on to your smart phone or tablet you will be able to use the Bluetooth feature to connect wirelessly to any Bluetooth enabled wireless SP device. This will provide you the ease of surveying the situation from a distance of up to 100m/328ft away so you can gain a wider perspective. If you are working in a high risk environment then the remote monitoring ability will also provide that extra safety assurance.

Once you are connected to the SP device, the simple and easy to use interface will allow you to use it with upmost efficiency. There are up to four different measurement units to choose from, depending on your preferences within your project. If you need to monitor the peak load measurement there is a ‘Peak Hold’ button you can select to only display the highest measurement from the SP device on-screen. Accompanying this is an option to set an audible alarm to sound when a new high or low measurement value is detected so you know exactly when this has occurred.

The app also has a record and log feature for when you need to record a particular measurement for later referral. Once logged to the app it will then allow you the convenience of exporting the details of the logged measurement(s) either to your mobile device or send it to a particular email address, in a spreadsheet format.

Please contact us for capacities higher than 260,000LBS for pricing and lead times.

FEATURES AND BENEFITS

  • Blue Tooth Transmission
  • Error free data transmission
  • Range of 328 feet/100 meters
  • Environmentally sealed to IP67/NEMA6
  • Unrivalled resolution
  • Unmatched Battery Life of 1200hrs
  • Low headroom solution
  • Manufactured using leading brand shackles
  • Each WLS is supplied with a load-centering bobbin
  • Design validated by F.E.A.

SUPPLIED WITH THE FOLLOWING AS STANDARD

  • Centralizing bobbin
  • Proof test certificate
  • Operator Manual
  • Carry/Storage Crate

APPLICATIONS

  • Under Hook Crane Weighing
  • Aircraft Manufacturing and Repair
  • Heavy Lift
  • Rigging
  • Escalator Comb Impact Testing
  • Wire Rope and Cable Tension Monitoring
  • Structural Load Testing and Certification
  • Shipping & receiving weighing
  • Off Shore Mooring Anchor Setting
  • Crane and Hoist Calibration and Proof Load Testing
  • Manufacturing and Heavy Construction
  • Bollard pull testing and certification

Wireless Loadshackle specifications

loadshackle dimemsions

wireless load shackle specifications

Note: We offer discounts on all Straightpoint products. For a best price call 800-572-2531 or click on the link to email us at sales@johnsonscale.com

Straightpoint’s Wireless Blue Tooth enabled  Loadshackle provides the perfect solution to limited headroom applications. Each Wireless Blue Tooth Loadshackle is proof tested, then equipped with a hard anodised aluminium electronics enclosure.
