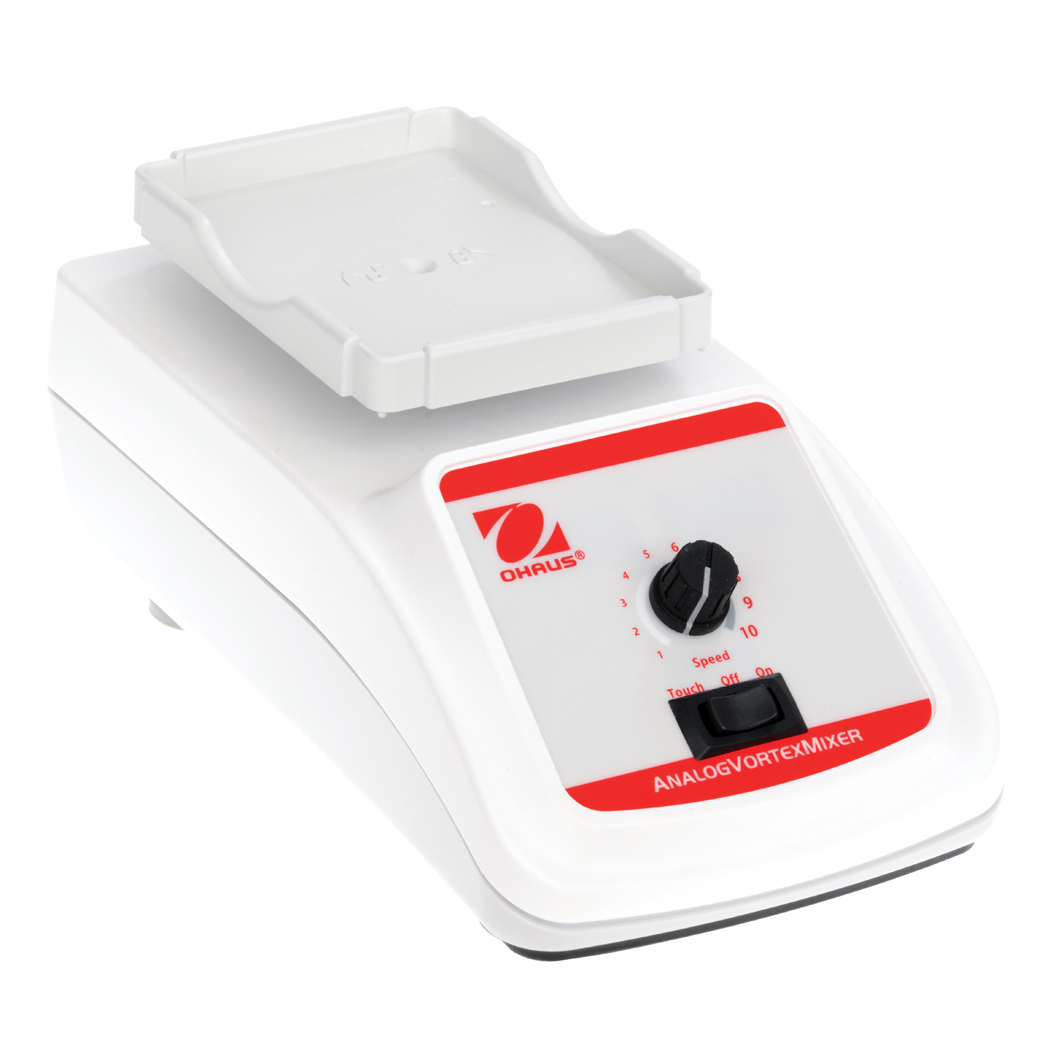

Ohaus VXMPAL Analog Microplate Vortex Mixer

Microplate Vortex Mixers are designed specifically for continuous duty throughout the speed range. Analog variable speed models or microprocessor-controlled digital models offer exact speed control for applications that demand repeatable results. The high-speed and small orbit of these mixers make them optimal for effectively mixing microplates. Cup head for mixing single tubes is also included.

Applications

ELISA Assays, PCR Preparations, Digestions, Cell Disruptions

Display

Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models) and adjustment knob with dial markings for variable speed control (analog models)

Operation
Detachable 3-wire cord and plug (included)

Communication
N/A

Construction
Cycoloy

Design Features
Microplate adapter and cup head (included)

Specifications
Control Analog
Duty Rating Continuous
Orbit 0.1 in (3.5 mm)
Speed Range On Mode, 300 rpm – 2500 rpm; Touch Mode, 300 rpm – 3500 rpm
Capacity 2 Microplates
Dimensions 4.5 in x 10.5 in x 5.4 in (11.4 cm x 26.7 cm x 13.7 cm)
Net Weight 11.7 lb (5.3 kg)
Power 120V, 0.25A, 50/60Hz
Power Consumption 30 W
Safety Certification TUV
Working Environment 39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing)
