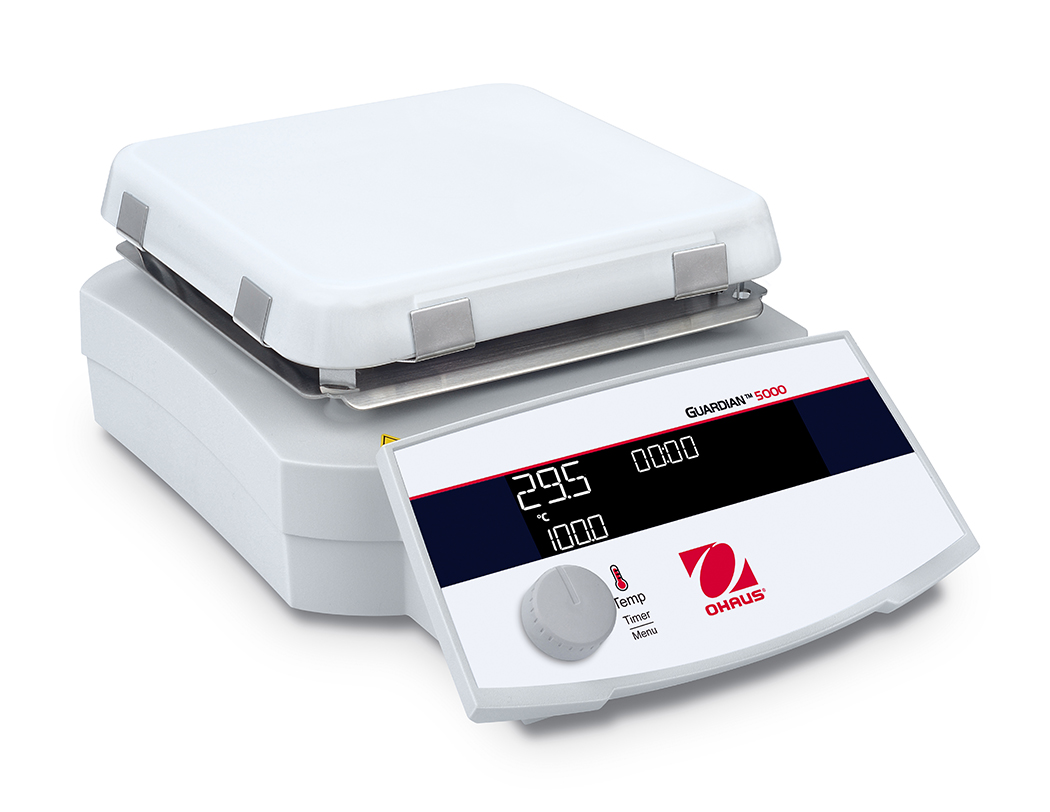

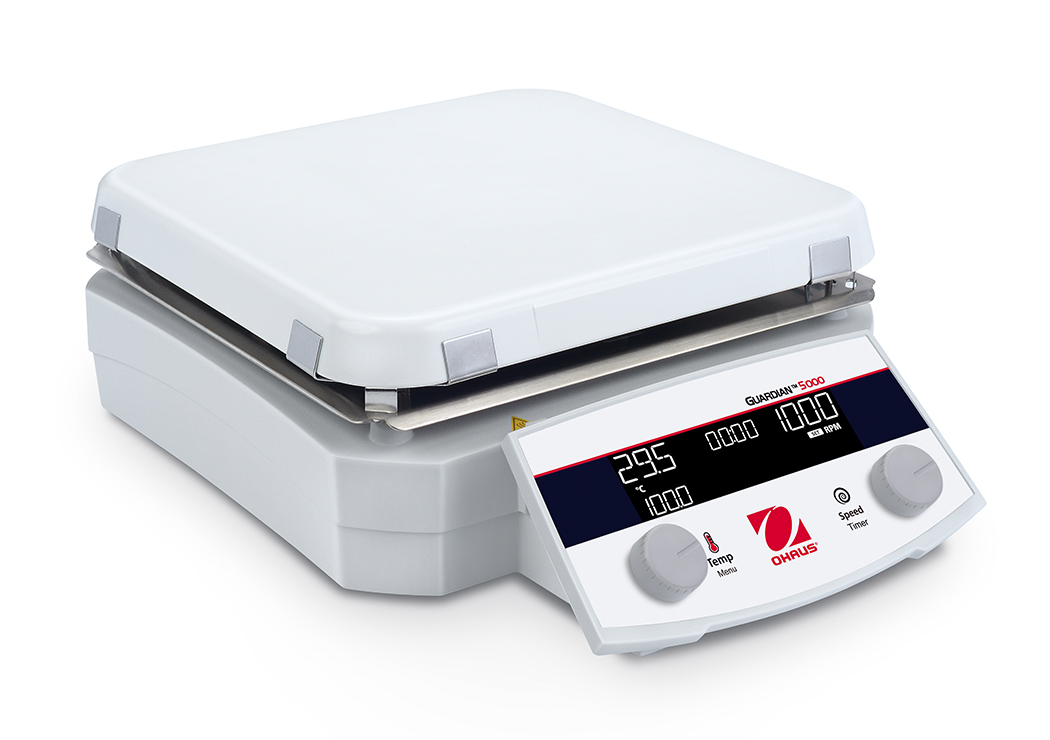

Ohaus Guardian 5000 Hotplate Stirrers
Versatile Performance, Uncompromised Safety
Introducing the Next Generation of Guardian 5000 Hotplate Stirrers
We’re excited to announce the Next Generation of Guardian 5000 Hotplate Stirrers, meticulously
engineered to elevate safety and versatility in everyday heating and stirring applications. These Hotplate
Stirrers are designed to meet the demands of research, academic and industrial settings, offering
powerful heating and mixing capabilities alongside premium safety features.
Key Features:
Display
Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring,
prominent hot top indicator light, probe in use icon, Single Point Calibration icon
Construction
Probe connection, robust, chemical resistant aluminum housing, IP32 ingress protection, control knobs,
On/Off switch for heater disconnect, built-in support rod holders, easy to clean ceramic or ceramic

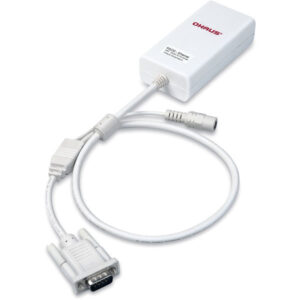

coated aluminum tops, built-in RS232 interface
Design Features
Hot top indicator light, audible alarm, SafetyHeat™ protection shuts off the heater in the event of a
malfunction, temperature calibration feature for 3 probe and 3 plate setpoints
Operation
Stirring from 50–1800 rpm, temperature range of ambient +5°C to 550°C 7×7 model, 500°C (10×10) or
360° (round top), power cord (included), stirring models include a 1.5″ (3.8 cm) PTFE coated stir bar
SafetyHeat™
Protects the lab—an industry leading early detection system uses two independent safety controls to monitor
the electronics and stop heating before an overtemperature condition occurs.

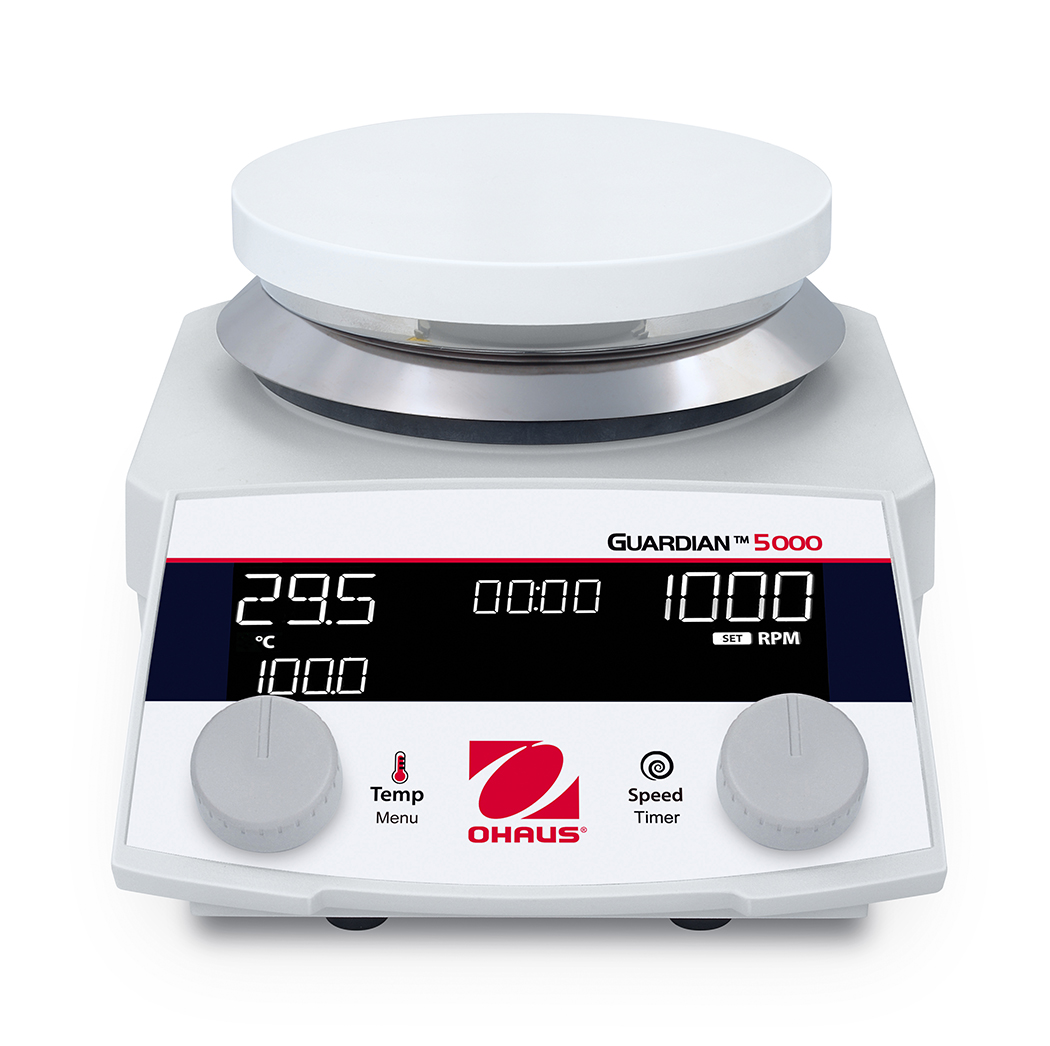

LCD Display
The bright LCD display includes large temperature and speed settings, intuitive icons and a prominent hot top indicator—all designed to quickly and easily monitor performance from across the lab.
Notes

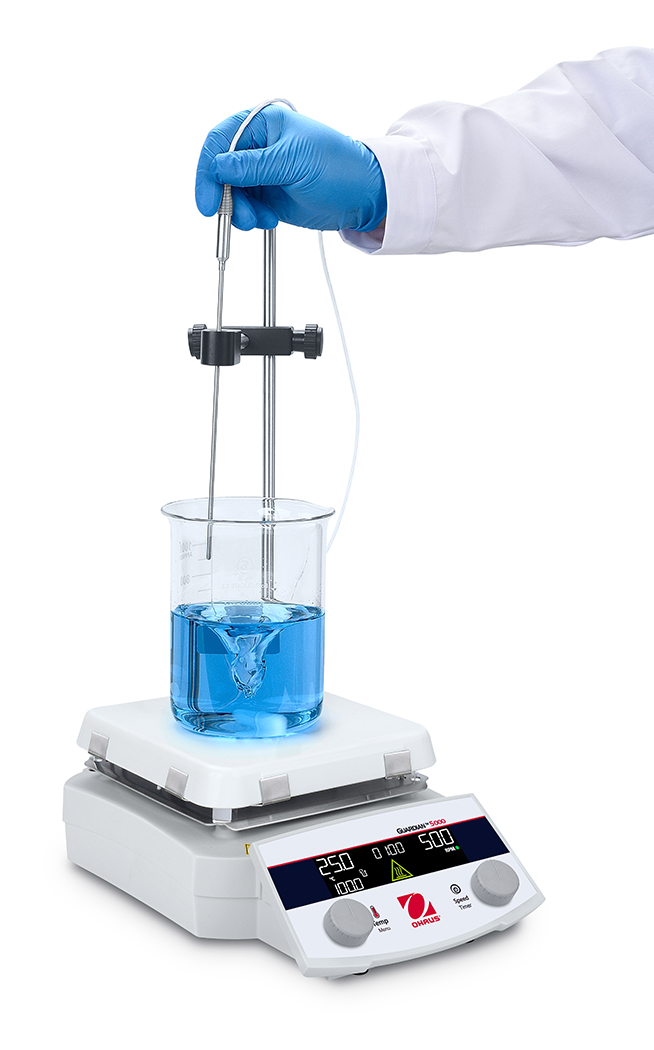

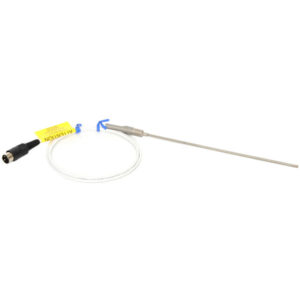

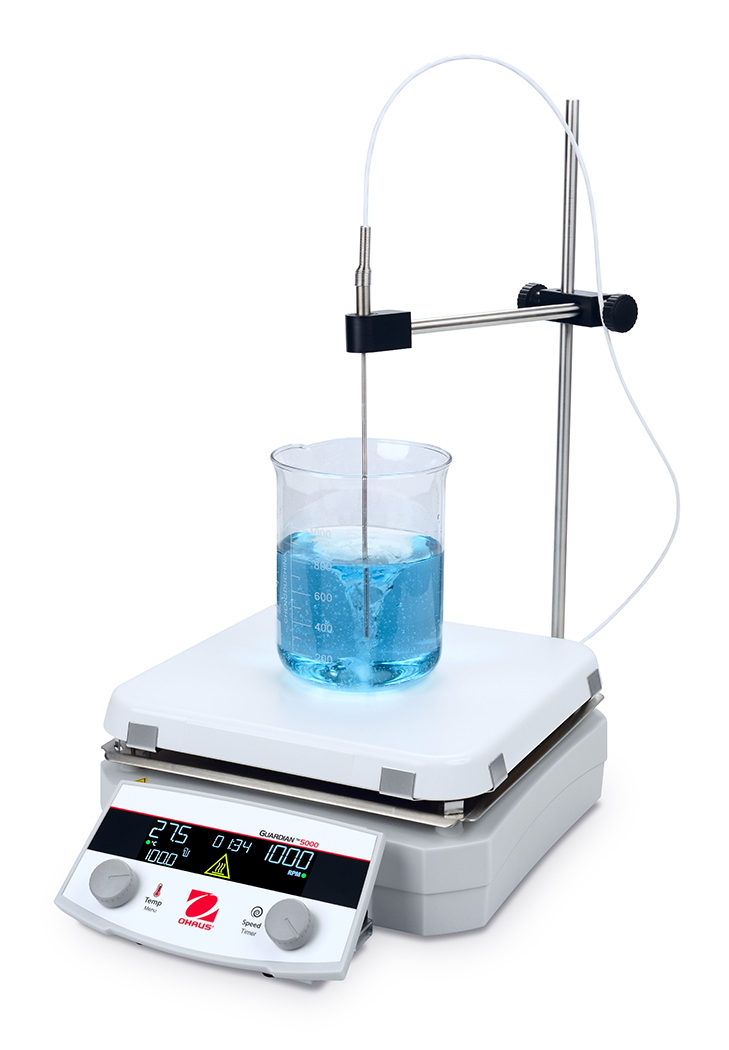

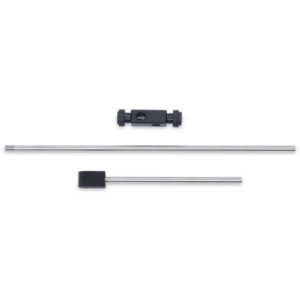

Kit-1 (“K1”) has the Temperature Probe 30500590 and the Probe Holder Kit 30973298 included in package

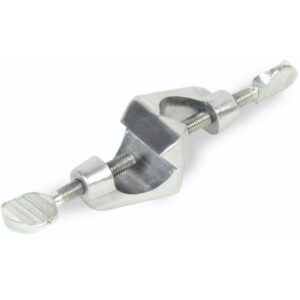

30400145 needs a separate double clamp or hook clamp for securing on Guardian 5000

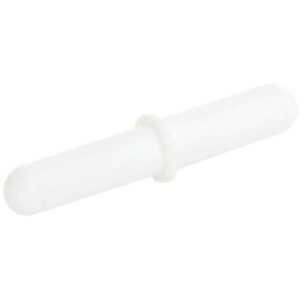

30726783 pack of 5 spinbars

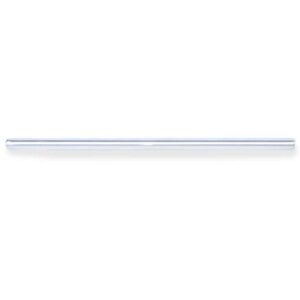

30392233 is for use with the 30500570 Base Plate only
