Mark-10 TT03 Digital Torque Gauge

Free Shipping!

Digital Torque Gauge

Series TT03

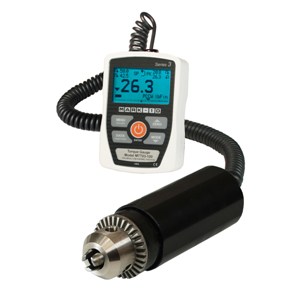

Series TT03 digital torque gauge testers are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capabilities from 10 ozFin to 100lbFin (7 to 1,150Ncm). A dedicated remote sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The torque gauge’s rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated requirements.

Series TT03 features a sampling rate of 2,000Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauge’s features and configurable parameters, USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The torque gauges overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied torque.

The gauges include MESUR Lite data acquisition software. Currently displayed readings may be sent to MESUR Lite for tabulation and one click export to EXCEL for further data manipulation.

Note: USB output now allows the gauge to respond to the ? ASCII command, allowing programs such as MESUR gauge and MESUR Lite to request single point or continuous data.

  • Ergonomic torque sensor with Jacobs chuck
  • Peak torque values saved and displayed
  • High speed 2,000 Hz sampling rate
  • USB data output
  • Programmable set points with pass/fail indicators
  • Live Load bar graph with setpoint markers
  • Peak CW and CCW readings always displayed
  • MESUR Lite sofware included
  • 3 year warranty

Series TT03 digital torque testers are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capabilities from 10 ozFin to 100lbFin (7 to 1,150Ncm). A dedicated remote sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauge’s rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated requirements.

Series TT03 features a sampling rate of 2,000Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauge’s features and configurable parameters, USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gauges overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied torque.

The gauges include MESUR Lite data acquisition software. Currently displayed readings may be sent to MESUR Lite for tabulation and one click export to EXCEL for further data manipulation.

Note: USB output now allows the gauge to respond to the ? ASCII command, allowing programs such as MESUR gauge and MESUR Lite to request single point or continuous data.

  • Ergonomic torque sensor with Jacobs chuck
  • Peak torque values saved and displayed
  • High speed 2,000 Hz sampling rate
  • USB data output
  • Programmable set points with pass/fail indicators
  • Live Load bar graph with setpoint markers
  • Peak CW and CCW readings always displayed
  • MESUR Lite sofware included
  • 3 year warranty
