Manual Torque Test Stand

Model – TST / TSTH

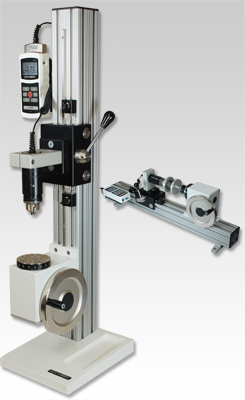

The TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. The TST’s versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient.

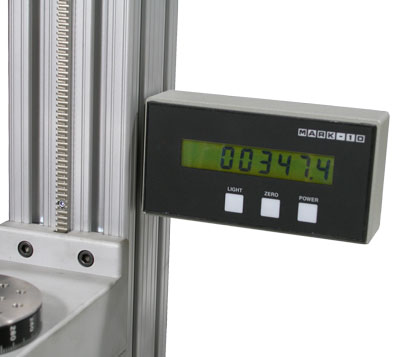

The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resettable angle indicator. Available in vertical and horizontal orientations. Digital angle indicator >> Displays cw or ccw angle in 0.1° resolution for approximately 278 rotations, resettable with “zero” button. Accurate to ±0.7°. Includes backlight. Three sets of mounting holes allow the indicator to be mounted perpendicular to, or parallel to the test stand column. It can also be repositioned along the column. Rugged aluminum housing. Available options include BG series gauge ,BGI gauge with remote sensor. Please feel free to call us to for assistance is putting together your system.

  • Slider travel 15.5 inches
  • Torque plate with tapped holes for fixtures
  • Smooth hand wheel operation
  • 100lb capacity maximim torque
  • Optiona angular indicator available
  • Adjustable travel stops
  • Vertical or horizontal versions available

The TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. The TST’s versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator. Available in vertical and horizontal orientations. Digital angle indicator >> Displays cw or ccw angle in 0.1° resolution for approximately 278 rotations, resettable with “zero” button. Accurate to ±0.7°. Includes backlight. Three sets of mounting holes allow the indicator to be mounted perpendicular to, or parallel to the test stand column. It can also be repositioned along the column. Rugged aluminum housing. Available options include BG series gauge ,BGI gauge with remote sensor. Please feel free to call us to for assistance is putting together your system.



  • Slider travel 15.5 inches
  • Torque plate with tapped holes for fixtures
  • Smooth hand wheel operation
  • 100lb capacity maximim torque
  • Optiona angular indicator available
  • Adjustable travel stops
  • Vertical or horizontal versions available
