Mark-10 Series RO8 Tension and Compression Force Sensors

gallery image
gallery image
gallery image

Mark-10 Series RO8 Tension and Compression Force Sensors

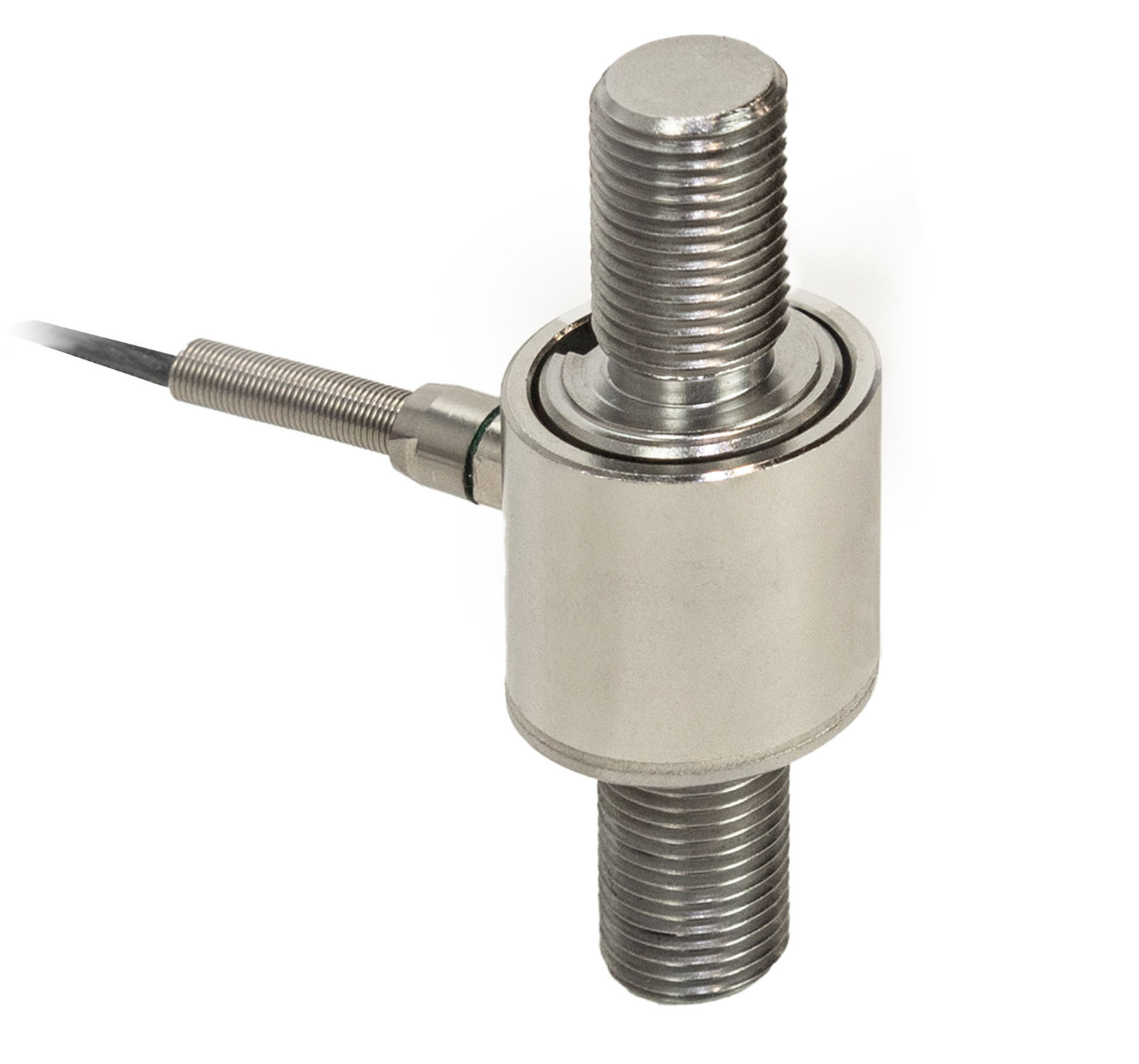

Universal sensors for tension and compression applications up to 10,000 lbF (50 kN). Threaded rods on each end allow for a variety of mounting configurations.

Compatible with Mark-10 indicators (sold separately), through unique Plug & Test® technology.

  • Member of the Plug & Test® family of interchangeable sensors and indicators
  • Threaded rods on both ends
  • 17-4PH stainless steel / IP64 design withstands harsh environments
  • NIST-traceable certificate of calibration with data is included.
    A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.
  • Warranty: 3 years
With Models M7I & M5I Indicators
Capacity x Resolution
Model lbF ozF gF kgF N kN

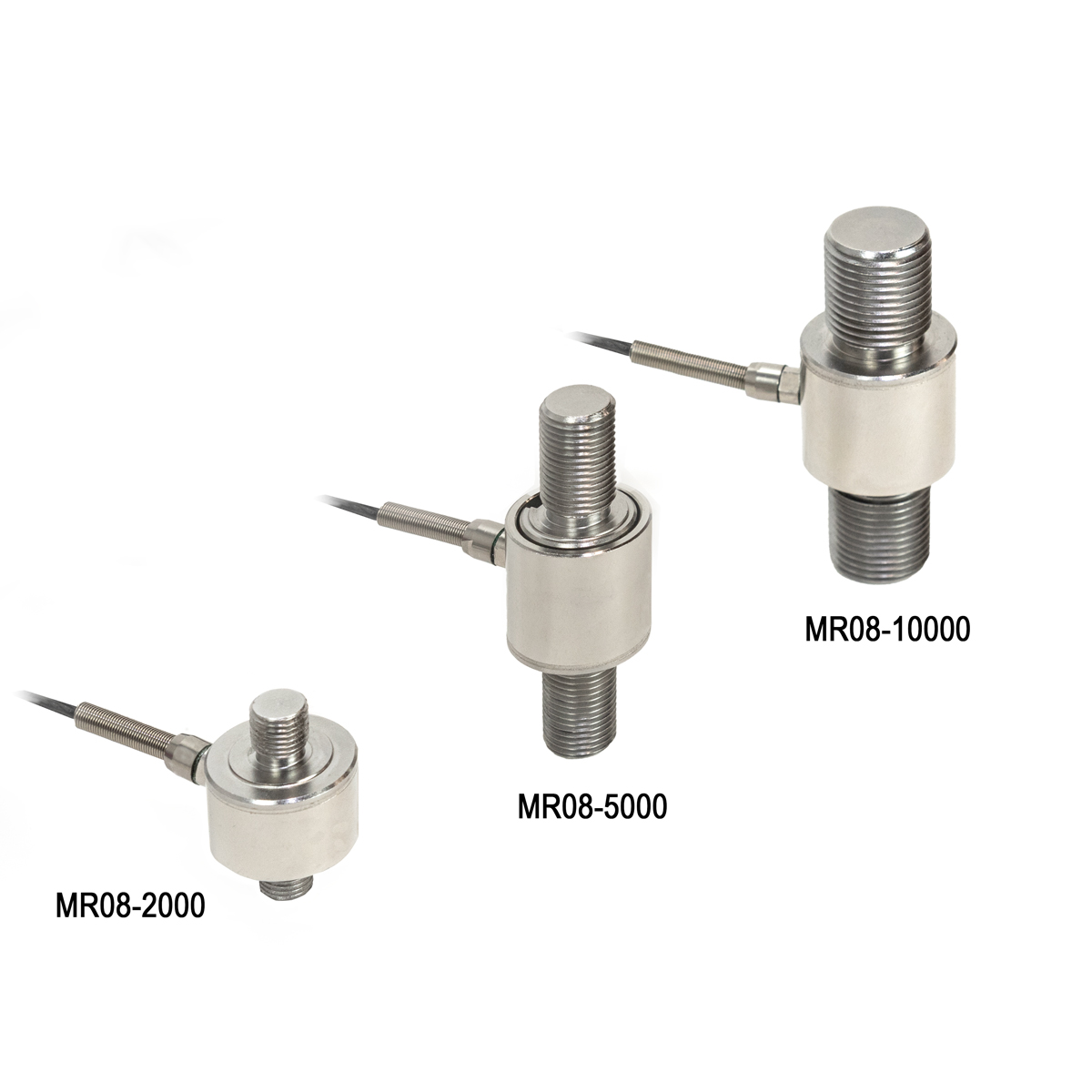

MR08-2000 2000 x 1 32000 x 20 1000 x 0.5 10000 x 5 10 x 0.005
MR08-5000 5000 x 2 2500 x 1 25000 x 10 25 x 0.01
MR08-10000 10000 x 5 5000 x 2 50000 x 25 50 x 0.02
With Model M3I Indicator
Capacity x Resolution
Model lbF kgF N kN
MR08-2000 2000 x 2 1000 x 1 10000 x 10
MR08-5000 5000 x 5 2500 x 2 25 x 0.02
MR08-10000 10000 x 10 5000 x 5 50 x 0.05



Mark-10 Series RO8 Tension and Compression Force Sensors

Universal sensors for tension and compression applications up to 10,000 lbF (50 kN). Threaded rods on each end allow for a variety of mounting configurations.

Compatible with Mark-10 indicators (sold separately), through unique Plug & Test® technology.
