Mark-10 R06-200 Wire Crimp Pull Sensor

Free Shipping!

Wire Crimp Pull Sensor

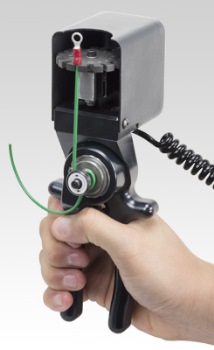

The MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by a Mark-10 indicator (sold seperately). A rotating turret with slots of multiple sizes accommodates a wide range of wire diamaters, up to 0.25 in. (6.4 mm). Member of the Plug & Test™ family of interchangeable sensors and indicators Ergonomic handles and convenient tensioning mechanism Measures pull forces NIST-traceable certificate of calibration with data included Accuracy:  ± 0.5% of full scale + indicatorWeight: 2.5 lb [1.2 kg]Slot dimensions (in [mm]): 0.03 [0.8], 0.05 [1.3], 0.06 [1.5], 0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.13 [3.3], 0.14 [3.6], 0.16 [4.1], 0.17 [4.3], 0.19 [4.8], 0.20 [5.1], 0.22 [5.6], 0.24 [6.1], 0.25 [6.4] Warranty: 3 years

 Capacity x ResolutionModellbFozFkgFNkNMR06-200200 x 0.13200 x 2100 x 0.051000 x 0.51 x 0.0005

 Capacity x ResolutionModellbFkgFNMR06-200200 x 0.2100 x 0.11000 x 1



The MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by a Mark-10 indicator (sold seperately). A rotating turret with slots of multiple sizes accommodates a wide range of wire diamaters, up to 0.25 in. (6.4 mm).  Member of the Plug & Test™ family of interchangeable sensors and indicators Ergonomic handles and convenient tensioning mechanism Measures pull forcesNIST-traceable certificate of calibration with data included Accuracy:  ± 0.5% of full scale + indicatorWeight: 2.5 lb [1.2 kg]Slot dimensions (in [mm]): 0.03 [0.8], 0.05 [1.3], 0.06 [1.5], 0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.13 [3.3], 0.14 [3.6], 0.16 [4.1], 0.17 [4.3], 0.19 [4.8], 0.20 [5.1], 0.22 [5.6], 0.24 [6.1], 0.25 [6.4] Warranty: 3 years  Capacity x ResolutionModellbFozFkgFNkNMR06-200200 x 0.13200 x 2100 x 0.051000 x 0.51 x 0.0005  Capacity x ResolutionModellbFkgFNMR06-200200 x 0.2100 x 0.11000 x 1
