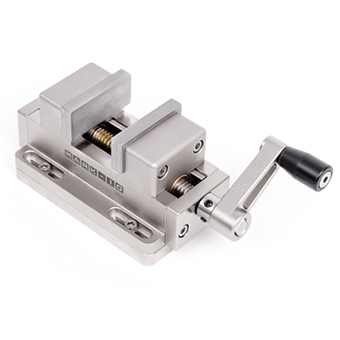

This general purpose self-centering vise can be used in a wide range of tension and compression testing applications. Wide opening range accommodates large and unique samples. Rugged design permits testing up to 500 lbF (2,500 N). Smooth removable jaws can be field-modified to improve sample gripping characteristics as required for pull testing application.
Replaces Model G1070.
Maximum tension force: 500 lbF (2,500 N)
Ergonomic lever, smooth operation
Mounts directly to the following test stands: ESM303, ESM1500 / ESM750 (when ordered with optional AC1055 mounting plate) ES30, TSC1000, TSF. Also compatible with ES10/ES20 when ordered with optional AC1060 mounting plate.
