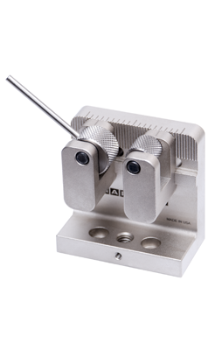

Mark-10 G1085 Adjustable Dual Roller Grip

Adjustable Dual Roller Grip

This cam grip secures the ends of tubing, cables, and odd shaped samples for pull testing applications. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. The rollers can be repositioned to the desired spacing, accommodating a broad range of sample widths up to 1″ (25 mm).IN [MM]

This cam grip secures the ends of tubing, cables, and odd shaped samples for pull testing applications. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. The rollers can be repositioned to the desired spacing, accommodating a broad range of sample widths up to 1″ (25 mm).IN [MM]                  Capacity lbF [N]Weight lb [kg]ABCDEFG200 [1,000]0.51 [0.23]2.40 [61.0]2.45 [62.2]1.30[33.0]0 – 1.00 [0 – 25.4]0.34 [8.6]1.20 [30.5]1.78 [45.3]

Clear

MODEL:

FULL DESCRIPTION +


This cam grip secures the ends of tubing, cables, and odd shaped samples for pull testing applications. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. The rollers can be repositioned to the desired spacing, accommodating a broad range of sample widths up to 1″ (25 mm).IN [MM]







Capacity
lbF [N]
Weight
lb [kg]
A B C D E F G
200
[1,000]
0.51
[0.23]
2.40
[61.0]
2.45
[62.2]
1.30
[33.0]
0 – 1.00
[0 – 25.4]
0.34
[8.6]
1.20
[30.5]
1.78
[45.3]
