Strength & Ergonomic Studies
The Model EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals.

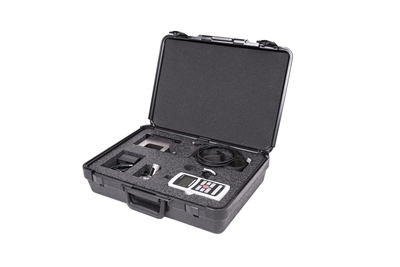

Conveniently stow all items in the included cushioned carrying case M5-200 Force guageCarrying caseTabletop mounting kit for force gauge, for vertical or horizontal orientationsAdjustable length looped strapClevis and clasp hook attachmentsAC adapter/chargerMESUR® Lite data collection softwareUSB cableNIST-traceable certificate of calibration with data
- Measures real time, average, and peak pull and push forces
- 200 lbF (1,000 N) force capacity
- Accuracy of ±0.1% of full scale
- Sampling rate of 7,000 Hz
- USB, RS-232, and analog outputs
- High / low limit indicators, for pass / fail and minimum force testing
- 1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESUR® Lite data collection software.
- Force gauge is compatible with other Mark-10 grips and attachments
The Model EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals.
Conveniently stow all items in the included cushioned carrying case M5-200 Force guageCarrying caseTabletop mounting kit for force gauge, for vertical or horizontal orientationsAdjustable length looped strapClevis and clasp hook attachmentsAC adapter/chargerMESUR® Lite data collection softwareUSB cableNIST-traceable certificate of calibration with data
Measures real time, average, and peak pull and push forces200 lbF (1,000 N) force capacityAccuracy of ±0.1% of full scaleSampling rate of 7,000 Hz USB, RS-232, and analog outputs High / low limit indicators, for pass / fail and minimum force testing1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESUR® Lite data collection software. Force gauge is compatible with other Mark-10 grips and attachments
Accuracy:
±0.1% of full scaleSampling rate: 7,000 HzPower: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.Battery life: Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous useCapacity x Resolution: 200 x 0.05 lbF, 3200 x 1 ozF, 100 x 0.02 kgF, 1000 x 0.2 N, 1 x 0.0002 kNOutputs: USB / RS-232: Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±0.25% of full scale at capacityGeneral purpose: Three open drain outputs, one input. Set points: Three open drain lines.Safe overload: 200% of full scale (display shows “OVER” at 110% and above)Warranty: 3 years (see individual statement for further details)
