Lloyd LD5kN & LD10kn Material Test Machines

Call for pricing

The cost effective LD Series testing machines are excellent for testing applications such as plastic, rubber, wood, packaging, construction materials, metals and automotive parts. They can be mounted above a floor standing compression cage for large sample or complete assembly testing.

The powerful LD Series testing machines from Lloyd Instruments combine high performance, ease of use and superior flexibility. These universal materials testing machines are ideal for testing applications up to 100 kN (22480 lbf) and are designed for both routine quality control testing, automated testing and for performing complex multi-stage testing.

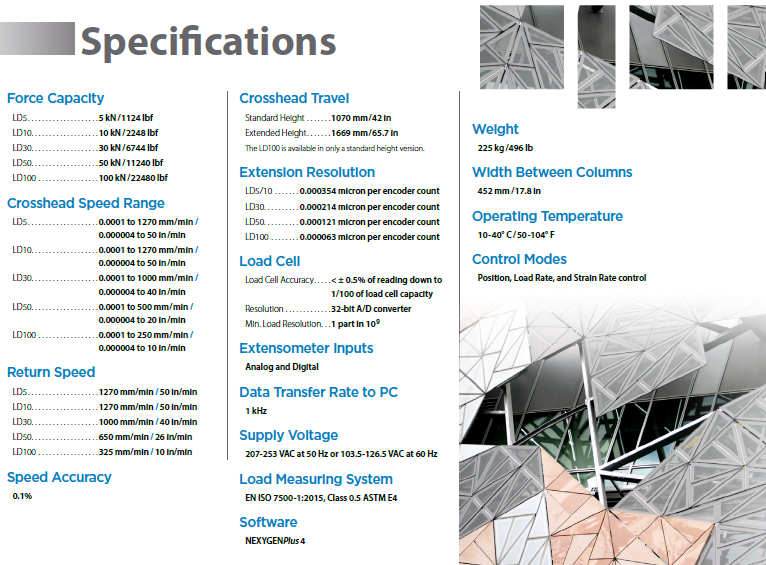

All LD Series testing machines feature an extra-large working area of 452 mm (17.8 in) and crosshead travel up to 1070 mm (42 in) extendable to 1669 mm (65.7 in). and are available in 5kN and 10kN capacities

The high stiffness frame incorporates a crosshead guidance system to prevent side loading of the test sample.

Interchangeable pancake load cells ensure high accuracy and optimize the test machines for tension, compression and cycling through to zero force measurements.

An advanced electrical design couples an AC drive with preloaded ball screws for better displacement accuracy.

The flexible NEXYGENPlus software interacts with Excel and Word, offering you the possibility of automatically transferring your test results directly into your own corporate templates.

All available modules are included in the NEXYGENPlus software price. The extensive library of pre-set test set-ups adherent to a wide selection of international standards.

A tablet option is available for the LD Series. When combining the LD Series tester with the tablet, the machine turns into a stand-alone test machine that loads all test data directly into the tablet eliminating the need for a computer. With an intuitive interface and quick-test functionalities, setting up a test, selecting test runs and exporting results takes only a few keystrokes. Test results can be exported into both pdf and .csv files.

Note: Shown with optional tablet.



MSRP: $888.88

Take your testing to new levels of flexibility and productivity. High precision LD Series materials testers are designed to automate your workflow, helping to reduce costs and save time, while providing high precision, accuracy and reliability.

DOCUMENTATION -
