LLoyd LD30, LD50 & LD100 Heavy Duty Test Frames

Call for pricing

All LD Series testing machines feature an extra-large working area of 452 mm (17.8 in) and crosshead travel up to 1070 mm (42 in) extendable to 1669 mm (65.7 in). and are available in 30kN, 50kN and 100kN capacities.

The high stiffness frame incorporates a crosshead guidance system to prevent side loading of the test sample.

Interchangeable pancake load cells ensure high accuracy and optimize the test machines for tension, compression and cycling through to zero force measurements.

An advanced electrical design couples an AC drive with preloaded ball screws for better displacement accuracy.

The flexible NEXYGENPlus software interacts with Excel and Word, offering you the possibility of automatically transferring your test results directly into your own corporate templates.

All available modules are included in the NEXYGENPlus software price. The extensive library of pre-set test set-ups adherent to a wide selection of international standards.

A tablet option is available for the LD Series. When combining the LD Series tester with the tablet, the machine turns into a stand-alone test machine that loads all test data directly into the tablet eliminating the need for a computer. With an intuitive interface and quick-test functionalities, setting up a test, selecting test runs and exporting results takes only a few keystrokes. Test results can be exported into both pdf and .csv files.

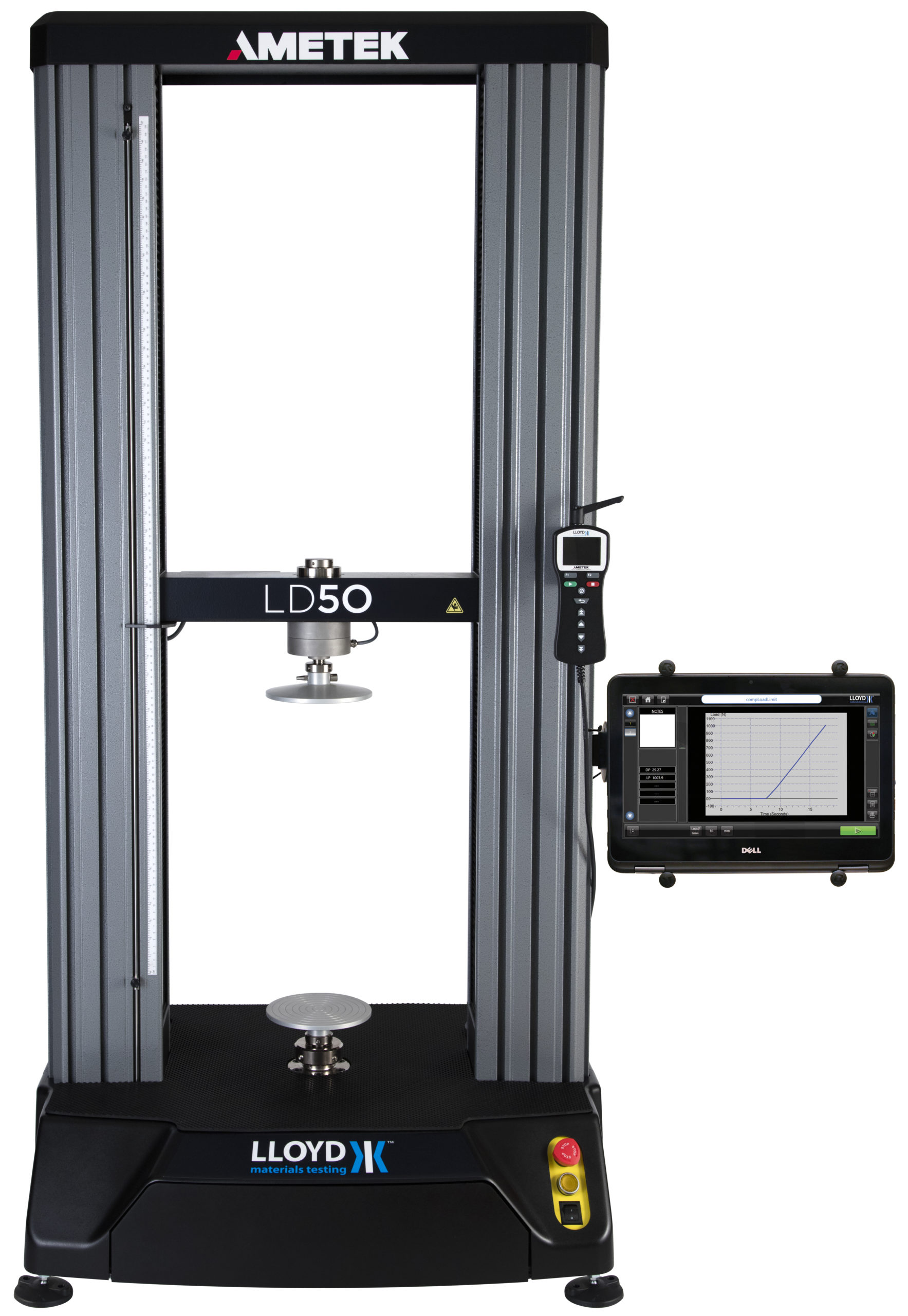

Note: Shown with optional tablet.

MSRP: $888.88

The advanced dual column LD Series materials testers incorporate an extensive range of features, making them ideal for performing both routine and complex tests up to 100kN. The robust design, featuring ultra-stiff frames to minimize deflection and a low rugged base offer unprecedented operator safety. Stiffness compensation eliminates compliance in applications where use of an extensometer is not practical.
