Intercomp SW Portable Weighing Pads
SW™ Portable Scale System Description
SW™ Series Scale Systems are designed for weighing anything from tractors to mobile homes and are ideal to ensure weight limits are met to avoid overload fines, ensure accurate information for consumers and reduce stress on equipment.
SW™ Series Axle Scales for Shipping
Weighing of boxes and palleted products for shipping is a common practice. When faced with irregularly shaped products that are difficult to weigh by standard methods, SW™ Series portable scales provide accurate weights, eliminating estimations and potential errors.
SW™ Series Portable Scale System Advantages
The SW™ Series portable scales provide a low-profile design for convenient vehicle approach and positioning. The weigh pad can handle load capacities up to 5,000 lb (2,500 kg) with an accuracy of ± .1%. Additional SW™ Series portable scale benefits include:
- RFX® Wireless Weighing Technology
- Commercially Available Batteries Last up to 150 Hours in Scales
- Wireless Indicator to Fully Control Scale Functions
Features:
- Accuracy of ±0.1% of Reading

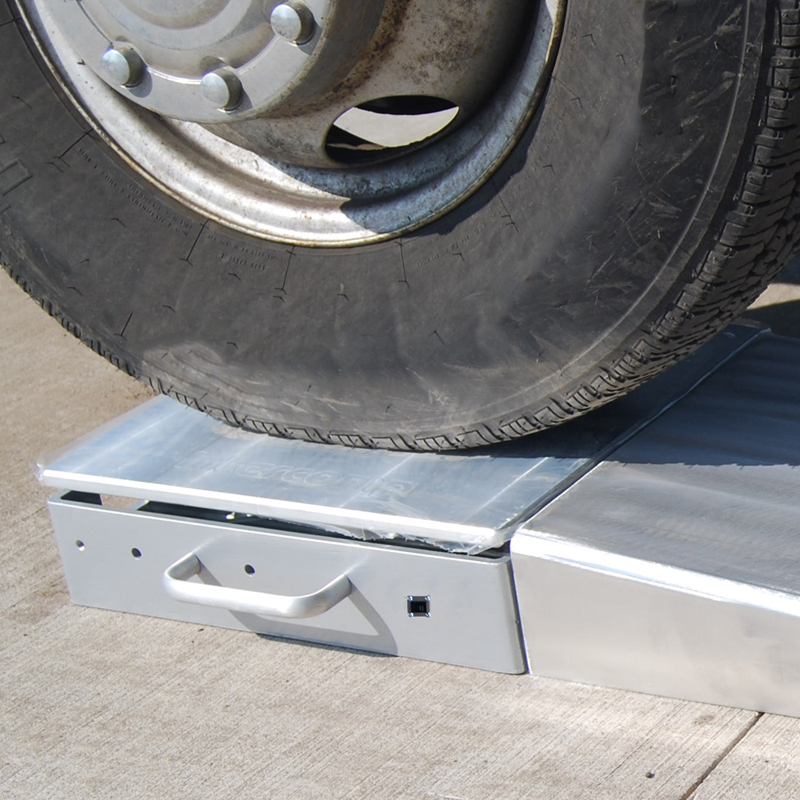

- 15″x15″x4″ (381x381x100 mm) RFX® Wireless Billet Scale Pads
- 8,800 lb (4,000 kg) & 20,000 lb (10,000 kg) System Capacities Available
- Commercially Available Batteries Last up to 150 Hours in Scales
Choice of indicators

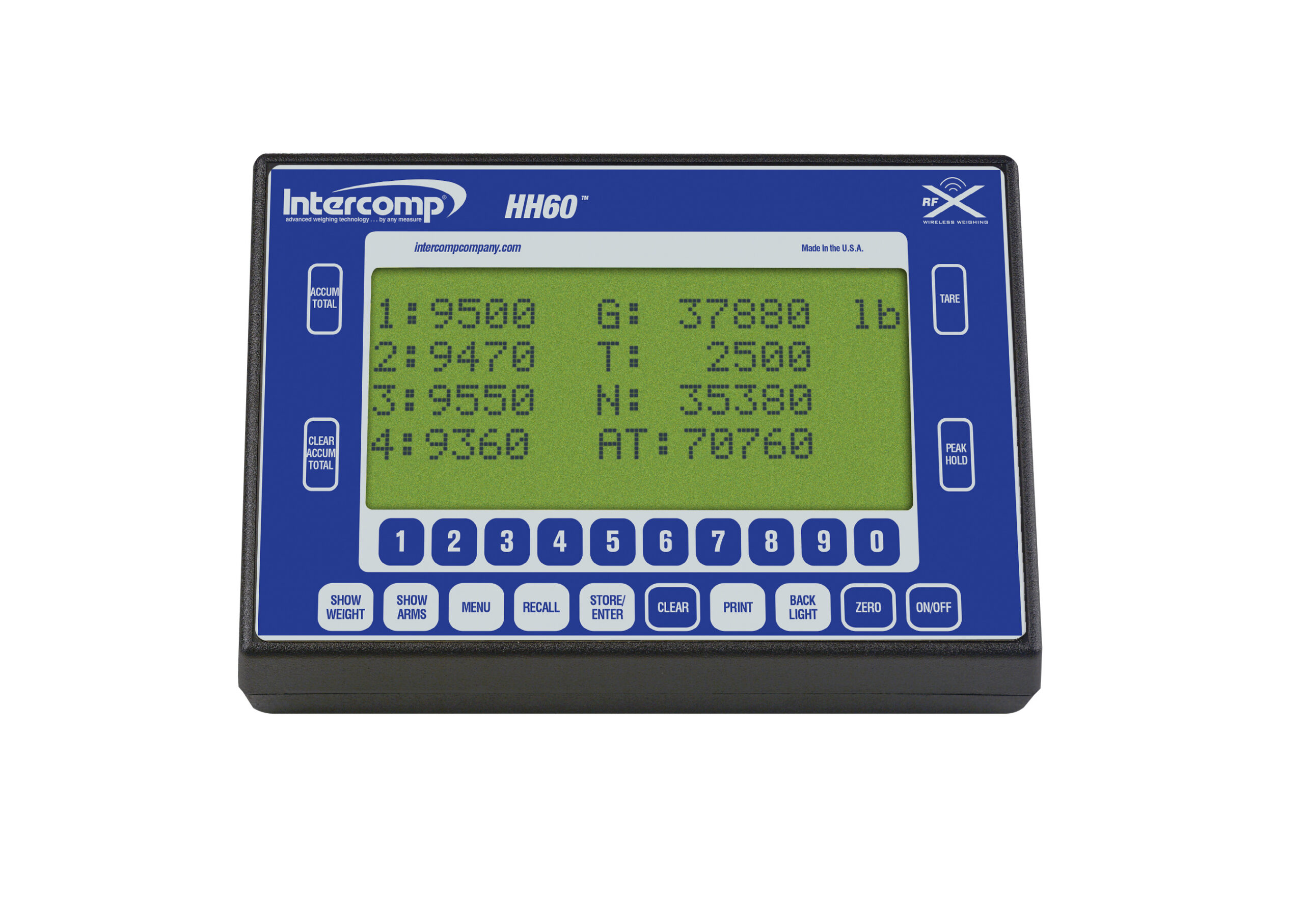

HH60™ RFX® Indicator
• Communicate with Up to Six Scales
• Communicate with iOS Mobile Device via Bluetooth® Technology
• Uses RFX® Communication Between Scale Pads & Indicator
• Offers Continuous & On-Demand Print Outputs
• Display Lock to Save Preferences for Future Weighings
• 0.5″ (13 mm), Backlit, Display Characters
• “Read-Only” Selection for Use in Tandem with Other RFX® Wireless Indicators

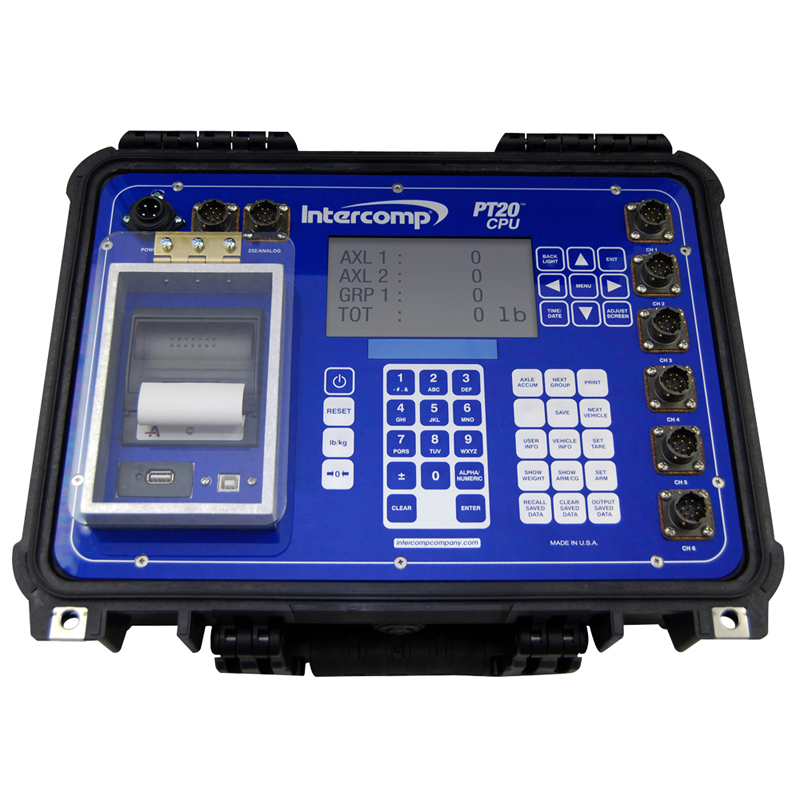

PT20 Indicator
- Fully Controls Scale Functions
• Data Export via USB or RS232
• Store, Recall & Print over 2,000 Separately-Stored Weight Records
• Communicates with up to 12 Scales within 300′ (90 m) Line-of-Sight
• Giant 0.5″ (12.7 mm), Backlit, Display Characters
• Enclosed within a Hardened Case for Durability & Portability
• Charger, D-Cell NiMH Batteries & Power Inverter Included
Capable
Systems Include:
- Four SW scale pads
- Wireless indicator to fully control scale functions (PT20 or HH60 handheld)
- Batteries
