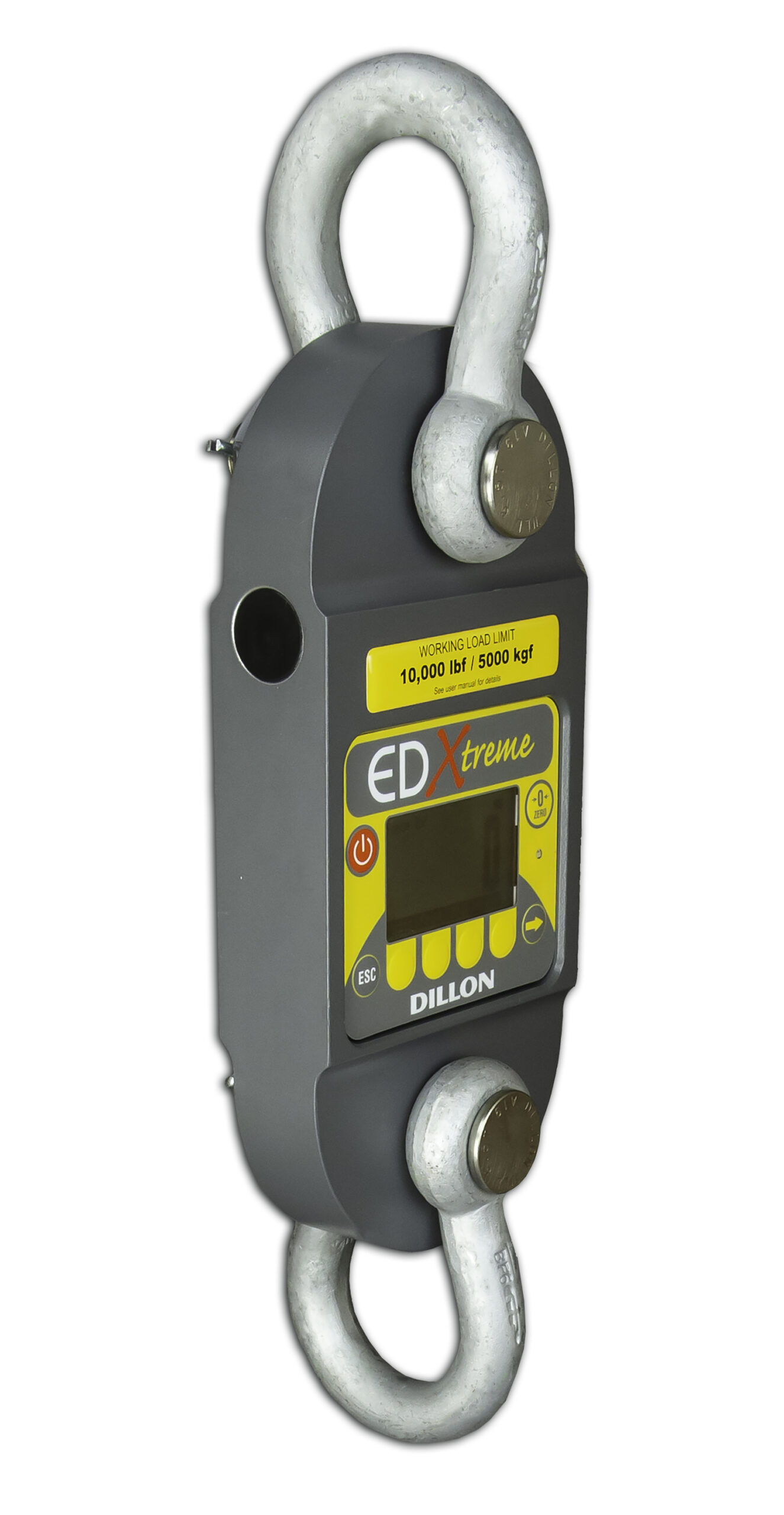

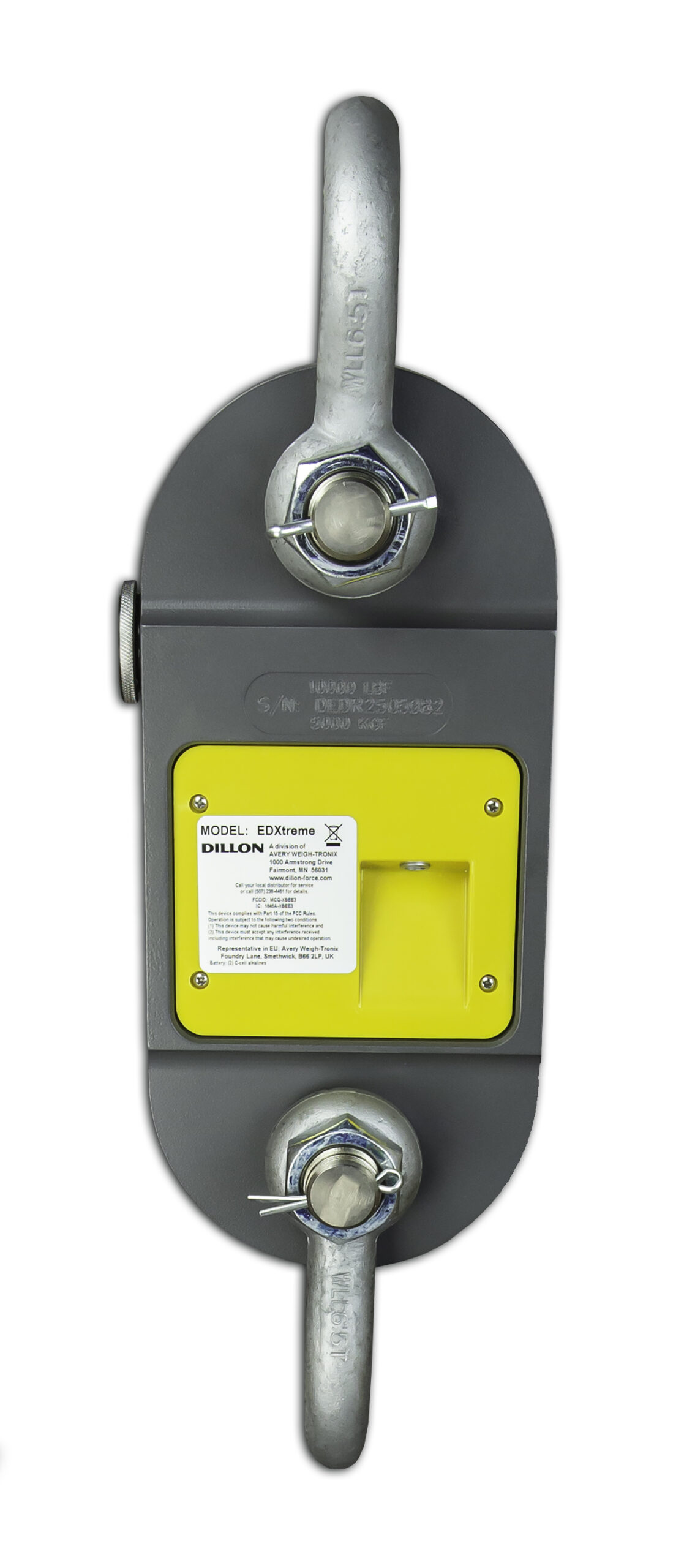

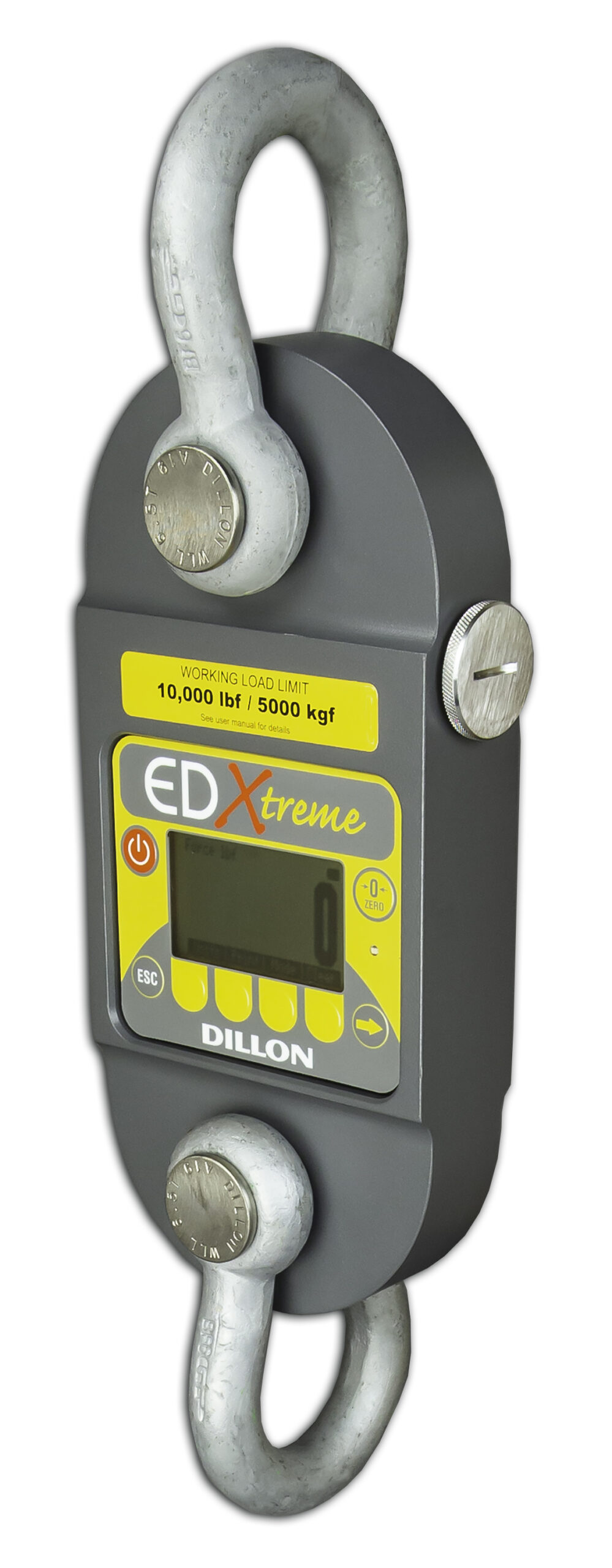

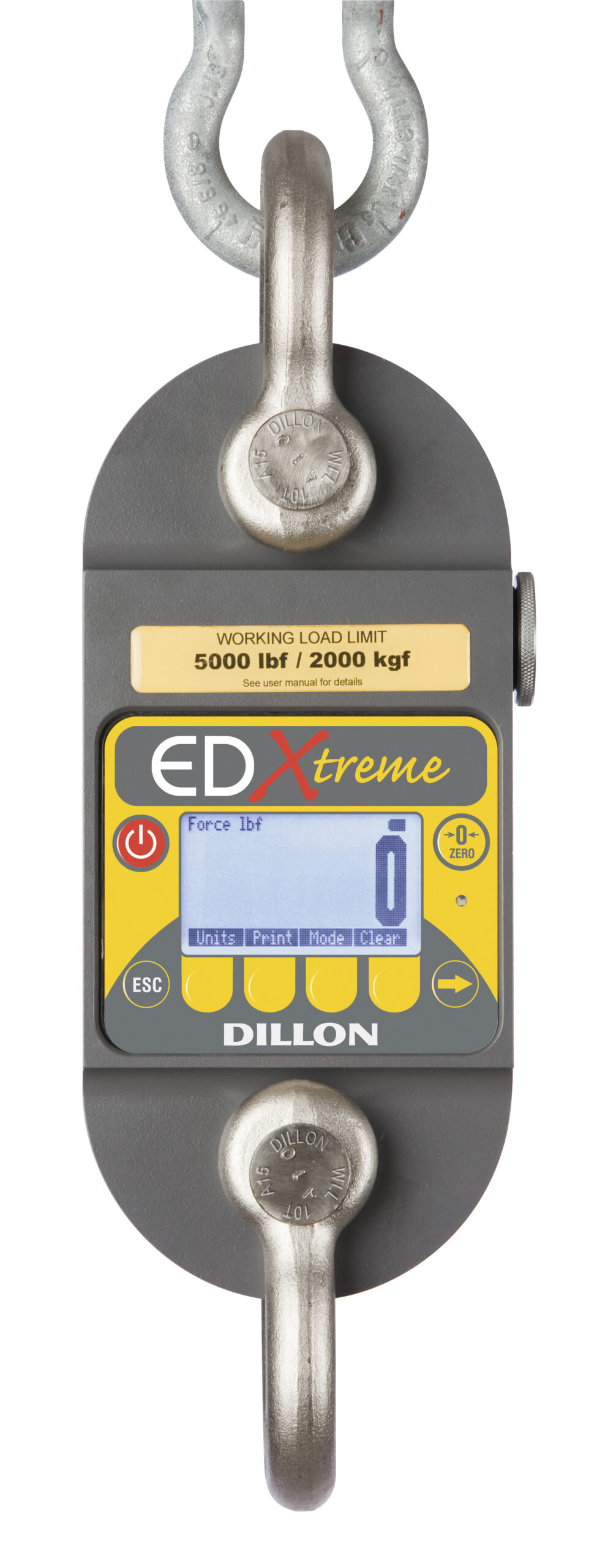

Dillon EDxtreme RED Dynamometer

Call for Special Pricing

WE OFFER DISCOUNTS ON ALL DILLON PRODUCTS
FOR BEST PRICE PLEASE CALL 1-866-997-0522 OR EMAIL US AT sales@johnsonscale.com

We are pleased to announce the new enhanced features of the EDXtreme Dynamomeer. The added functionality’s provide a greater distance for remote operation, eliminate interface issues and now one or more communicators can monitor multiple dynamometers and display readings at any or or lift points and calculate the total load



Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillon’s experience shines through. The engineers assigned to the EDxtreme drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.



Superior strength and corrosion resistance – High capacity models are constructed of electroless nickel-plated aircraft-quality alloy steel. Lower capacity models are anodized aircraft-quality aluminum. 5:1 factor of safety – This measure of strength and safety is maintained in all capacities. Computer modeling confirms the low stress and the long product life that is inherent in the EDXtreme design. Retained hardware – Allows permanent attachment of centering spacers, which eliminates fumbling during high capacity rigging. NEMA 4X/IP55 – The EDxtreme is clearly the choice for reliability in any environment — in plant or out on the job site.



Xtreme accuracy: 0.1%



High resolution and accurate repeatable readings are essential to proper weighing. The higher standards set for the EDxtreme meant taking the time to ensure that material characteristics, load element design and strain gauge meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity. The enhanced resolution made of 1 part in 5000 provides the level of readability needed for refined weighing.



Xtreme ease



Exclusive SOFTKEY interface – Dillon has eliminated confusing menus for faster setup and simple operation. In addition to lbf, kgf and Newtons, programmable functions can correct for gravitational variations and allow the use of custom units of measurement.



Wide andle LCD – Provides improved readability over a wider viewing angle and is available with backlighting for low light conditi



Battery operation – The EDxtreme is powered by two standard C-cell batteries. Batteries are easily accessible for fast replacement

Available in capacities up to 550,000lbs. Please contact us for pricing and delivery.



  • High resolution dot matrix LCD display with improved backlight intensity
  • NEMA 4X/IP65 protection rating.
  • Easy acces battery department without tools
  • Sturdy aircraft quality aluminum or steel casing on high capacity models.
  • Superior strength and corrosion resistance.
  • Dramtically improved battery life- 40 hrs. to 150hrs.
  • Improved radio communication distance from 300′ to 600′
  • Date and time
  • Continuous data storage
  • Date and time recorded with overload
  • Re-calibration reminder

Optional Data Export Pack



Data Export Pack



The data export pack is a complete kit for exporting data into Excel from the serial port of a Dillon instrument  (Excel will need to be set up with comma delimited format).



The kit includes an RS-232 hardware wedge with 6’ USB cable and RS-232 to 9 pin interface cable to PC.



Plug and play solution



The hardware wedge allows you to transfer RS-232 data into any application that supports keyboard input.  When you plug the Hardware Wedge into a USB port on your PC, the drivers will automatically be installed within a few seconds. Data export is simple using Excel with comma delimited format.



The wedge is simple to use and does not require any configuration steps by the user.   Standard configuration is set to 9600-N-8-1 and cannot be changed by the user.



We are pleased to announce the new enhanced features of the EDXtreme Dynamomeer. The added functionality’s provide a greater distance for remote operation, eliminate interface issues and now one or more communicators can monitor multiple dynamometers and display readings at any or or lift points and calculate the total load



Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillon’s experience shines through. The engineers assigned to the EDxtreme drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.



Superior strength and corrosion resistance – High capacity models are constructed of electroless nickel-plated aircraft-quality alloy steel. Lower capacity models are anodized aircraft-quality aluminum. 5:1 factor of safety – This measure of strength and safety is maintained in all capacities. Computer modeling confirms the low stress and the long product life that is inherent in the EDXtreme design. Retained hardware – Allows permanent attachment of centering spacers, which eliminates fumbling during high capacity rigging. NEMA 4X/IP55 – The EDxtreme is clearly the choice for reliability in any environment — in plant or out on the job site.



Xtreme accuracy: 0.1%



High resolution and accurate repeatable readings are essential to proper weighing. The higher standards set for the EDxtreme meant taking the time to ensure that material characteristics, load element design and strain gauge meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity. The enhanced resolution made of 1 part in 5000 provides the level of readability needed for refined weighing.



Xtreme ease



Exclusive SOFTKEY interface – Dillon has eliminated confusing menus for faster setup and simple operation. In addition to lbf, kgf and Newtons, programmable functions can correct for gravitational variations and allow the use of custom units of measurement.



Wide andle LCD – Provides improved readability over a wider viewing angle and is available with backlighting for low light conditi



Battery operation – The EDxtreme is powered by two standard C-cell batteries. Batteries are easily accessible for fast replacement

Available in capacities up to 550,000lbs. Please contact us for pricing and delivery.



  • High resolution dot matrix LCD display with improved backlight intensity
  • NEMA 4X/IP65 protection rating.
  • Easy acces battery department without tools
  • Sturdy aircraft quality aluminum or steel casing on high capacity models.
  • Superior strength and corrosion resistance.
  • Dramtically improved battery life- 40 hrs. to 150hrs.
  • Improved radio communication distance from 300′ to 600′
  • Date and time
  • Continuous data storage
  • Date and time recorded with overload
  • Re-calibration reminder

Optional Data Export Pack



Data Export Pack



The data export pack is a complete kit for exporting data into Excel from the serial port of a Dillon instrument  (Excel will need to be set up with comma delimited format).



The kit includes an RS-232 hardware wedge with 6’ USB cable and RS-232 to 9 pin interface cable to PC.



Plug and play solution



The hardware wedge allows you to transfer RS-232 data into any application that supports keyboard input.  When you plug the Hardware Wedge into a USB port on your PC, the drivers will automatically be installed within a few seconds. Data export is simple using Excel with comma delimited format.



The wedge is simple to use and does not require any configuration steps by the user.   Standard configuration is set to 9600-N-8-1 and cannot be changed by the user.
