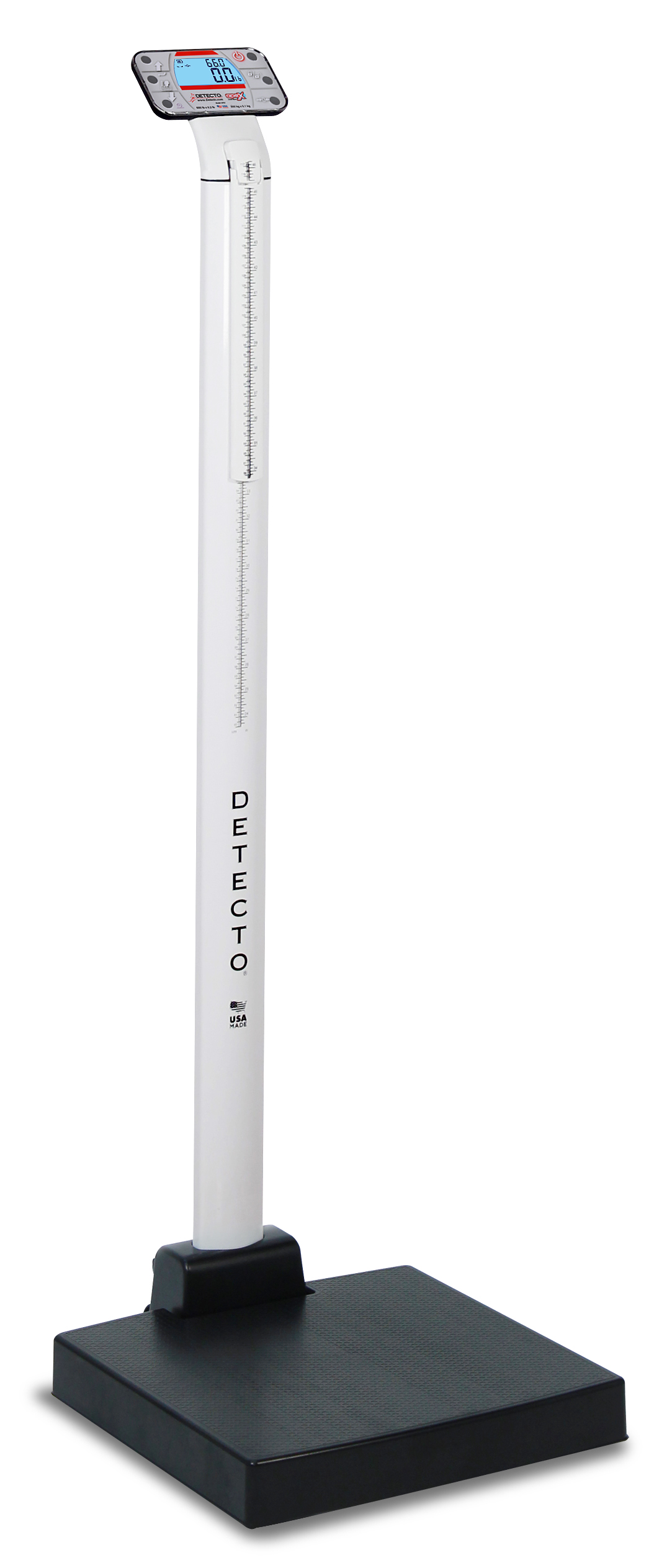

Detecto Apex Digital Physicians Scale With Mechanical Height Rod

Detecto Apex Digital Physicians Scale With Mechanical Height Rod

DETECTO’s apex® eye-level digital physician scales feature inline mechanical height rods and an extra-wide, flat platform measuring 17 in W x 17 in D x 2.75 in H. The apex® scale features 600 lb x 0.2 lb / 300 kg x 0.1 kg capacity, 0.75-inch-high clinical-blue LCD weight readouts, units locking into kilograms or pounds, BMI calculation, AC or battery power (AC adapter included on some models), 1 RS232 serial port and 1 micro USB-B port, HL7 IEEE 11073 compliance, Wi-Fi/Bluetooth and Welch Allyn connectivity (available on some models), dual wheels for transport, sturdy column construction, and integral bubble level.

Features:

Capacity: 600 lb x 0.2 lb / 300 kg x 0.1 kg (lb or kg selected upon initialization at start-up)
Platform Size:
17 in W x 17 in D x 2.75 in H / 43.2 cm W x 43.2 cm D x 7 cm H
Weighing/Height Units:
 Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm)
Power:
12 AA batteries (not included) or AC adapter (included with some models)
Height Rod:
 Mechanical inline height rod
Height Rod Measures: 24” (2’) – 86” (7’2”) x 0.125 in / 60 cm – 218 cm x 0.1 cm
Overall Dimensions:
17 in W x 19.5 in D x 53.3 in H / 43 cm W x 49.5 cm D x 135.3 cm H
Ports:
1 RS232 serial port and 1 micro USB-B port
Device Connectivity:
HL7 IEEE 11073 compliant (standard); Welch Allyn® device connectivity available on some models (CVSM, CSM, and LXI); Wi-Fi/Bluetooth models also available for wireless EMR/EHR
Keypad: 6 buttons (Power, Lock/Release, Zero, BMI, Up Arrow, Down Arrow)
Country of Origin:
USA

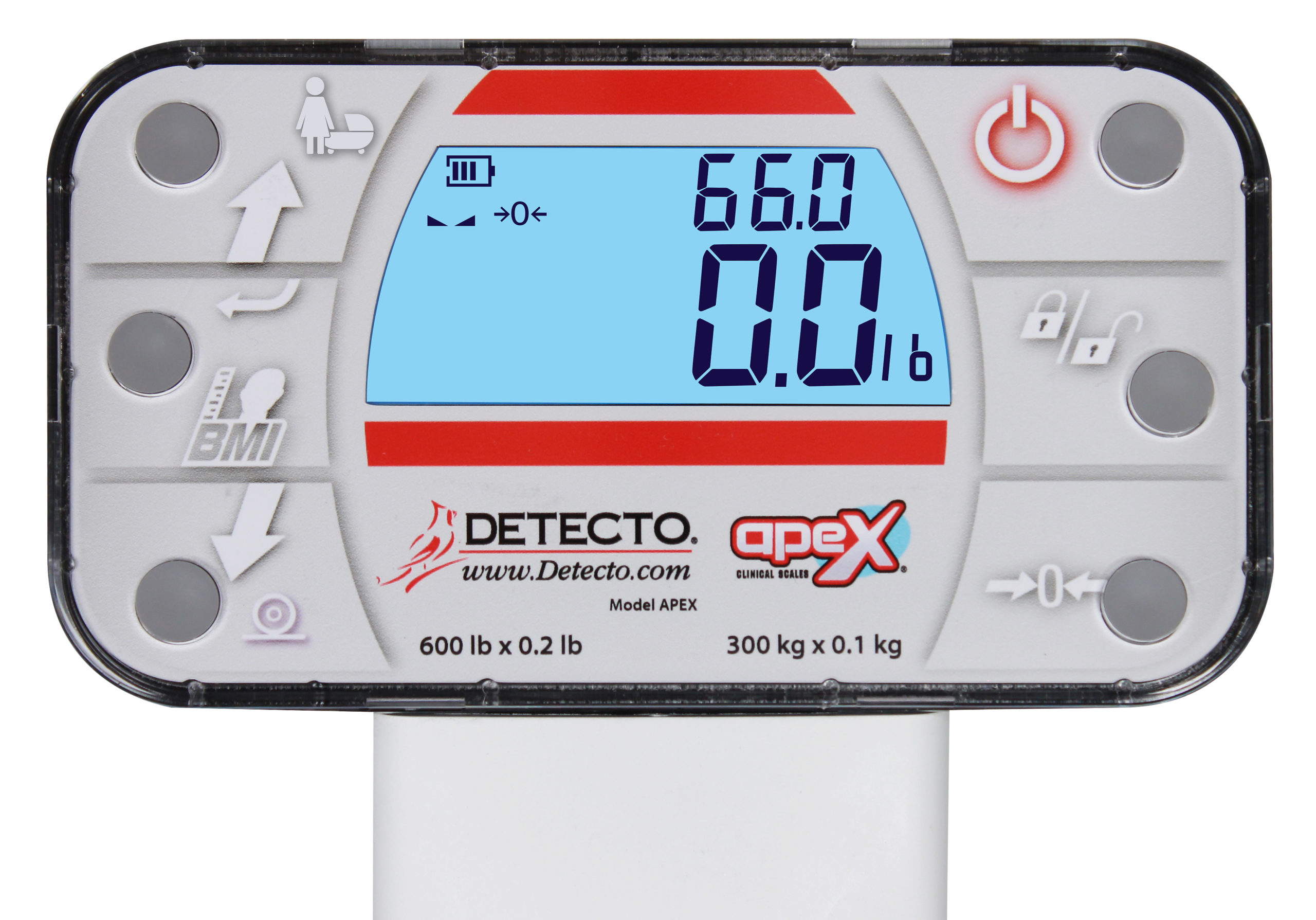

Display Type:
Dual-row, seven-segment, clinical-blue LCD
Number of Characters:
Weight: 5 digit, 0.75 in (19 mm) high / Height/BMI: 4 digit, 0.4 in (10 mm) high
Operating Environment:
Operated Temperature Range: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 0 to 90% non-condensing
Digital Filtering:
StableSENSE® Adjustable Filtering
Construction:
 Column – aluminum white powder coated; base – steel; indicator enclosure – ABS
